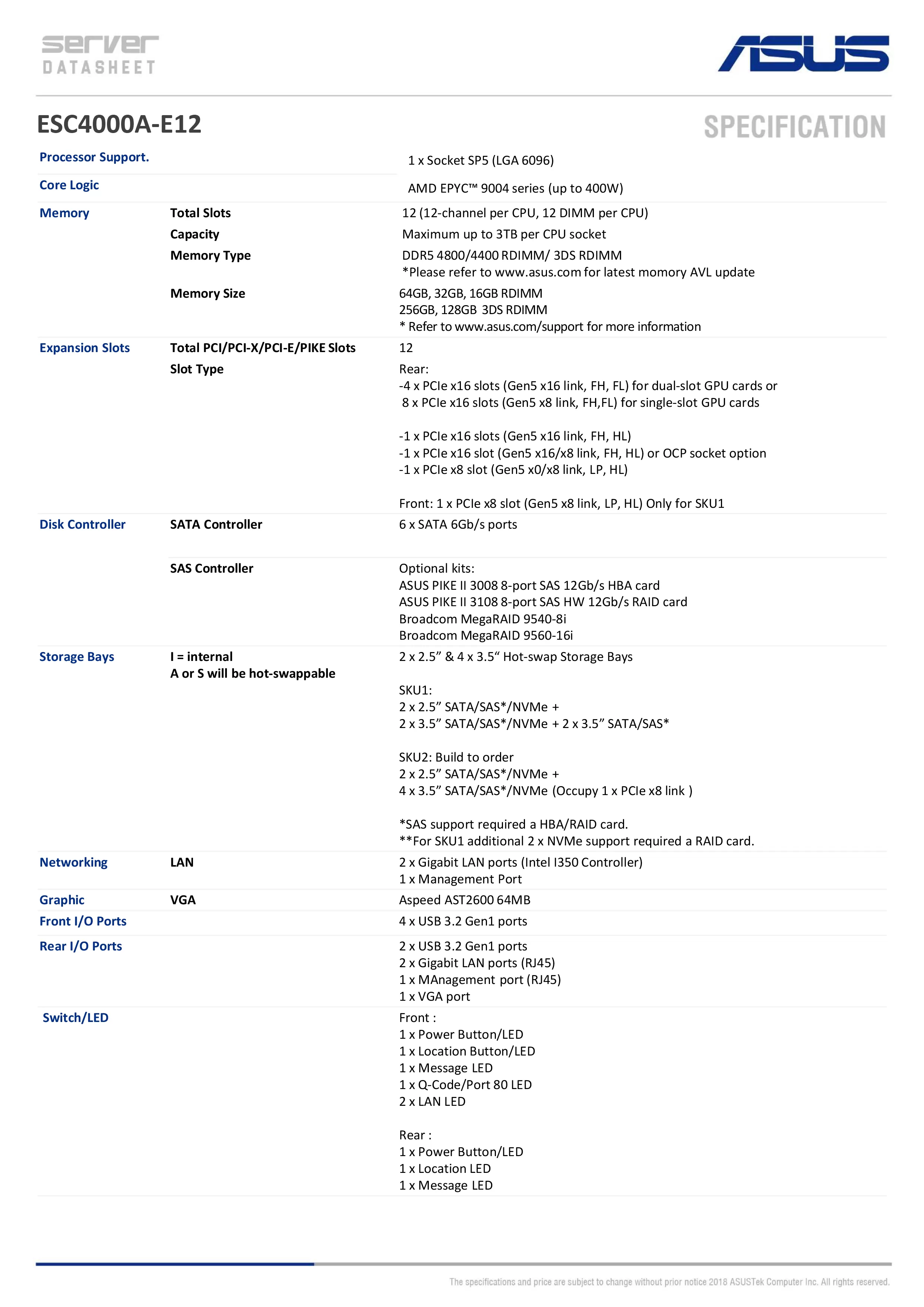

1 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 series (up to 400W)
4th Generation AMD EPYC Processorswith AMD 3D V-Cache technology
Memory
Total Slots : 12 (12-channel) Capacity : Maximum up to 3TB RDIMM Memory Type :
DDR5 4800/4400 RDIMM/RDIMM 3DS Memory Size :
64GB, 32GB, 16GB RDIMM
256GB, 128GB 3DS RDIMM
* Refer to support page for more information
Expansion Slots

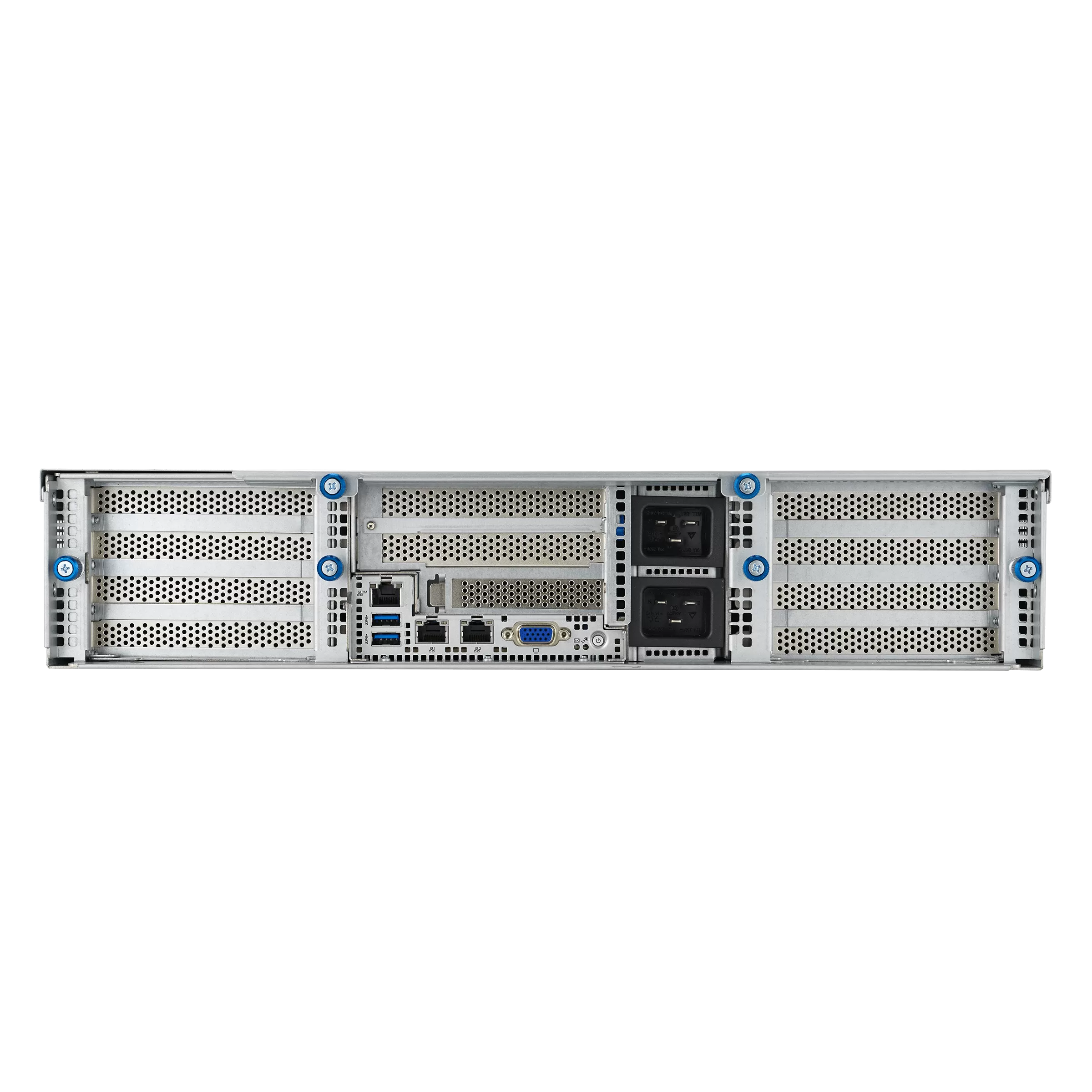

Rear:
-4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
-1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
-1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module
-1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)
Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1
Storage
Storage Controller :
CPU Integrated
Optional kits:
ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card
ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card
Broadcom MegaRAID 9540-8i
Broadcom MegaRAID 9560-16i
Drive Bays

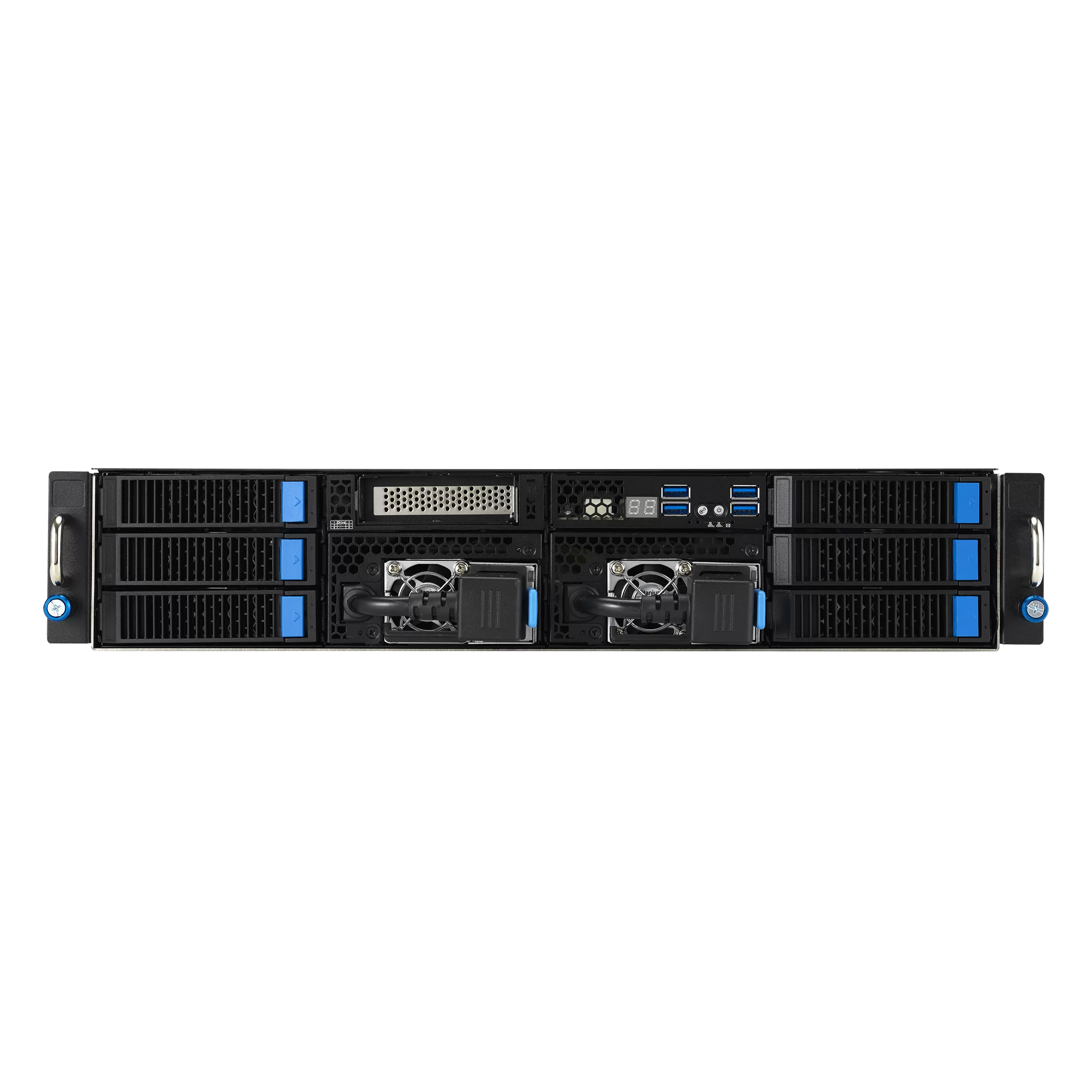

2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays
SKU1:
2 x 2.5” SATA/SAS*/NVMe +
2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS*
SKU2: Build to order
2 x 2.5” SATA/SAS*/NVMe +
4 x 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link )
Optional: 1 x M.2 with riser module
*RAID card is required to support SAS hard drives
**For SKU1 additional 2 x NVMe support required a RAID card.
Networking
2 x GbE LAN ports (Intel I350 Controller)
1 x Management Port
