BD5(W-1-PK)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
BE5000 ultimate BE performance : 688+4323 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
Internal antennas x 4
2.4GHz 2x2
5GHz 2x2
1.5GHz quad-core processor
RAM 512MB , Flash 128MB
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/240 MHz bandwidth (The availability of 240 MHz depends on the country)
2.4 GHz
5 GHz
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
2.5G x 2 (WAN/LAN auto detecting)
WPS button, Reset button, Power switch
Power x 1
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max 1.5A current

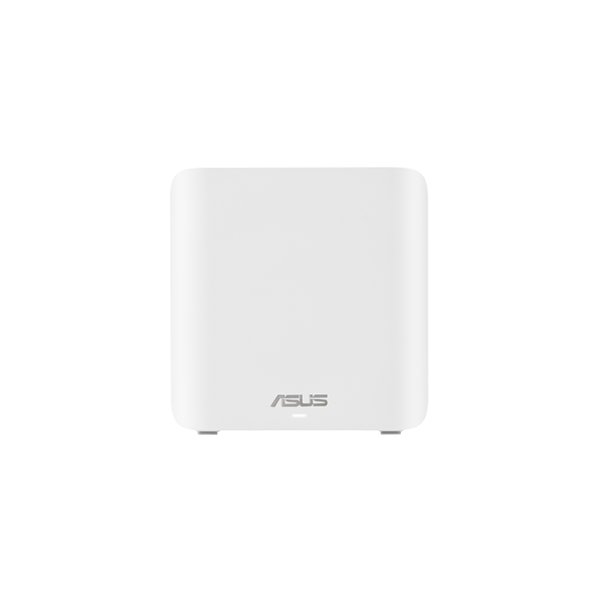

ZenWiFi BD5
RJ45 cable
Power adapter
Warranty card
Quick start guide
140 x 70 x 140 mm
Content may vary in different regions and packages.
AiMesh
Primary AiMesh router
AiMesh node
Parental Control
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Parental Control Customized Internet schedule
有
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Guest Network
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Traditional QoS
Traffic Monitor
Traffic Analyzer
Website history
Port forwarding
Port triggering
DMZ
DDNS
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
Wake on LAN (WOL)
MU-MIMO
UTF-8 SSID
WiFi MAC address filter
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Support Google Assistant
