IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
BE3600 ultimate BE performance : 688+2882 Mbps
802.11a：最高 54 Mbps
802.11b：最高 11 Mbps
802.11g：最高 54 Mbps

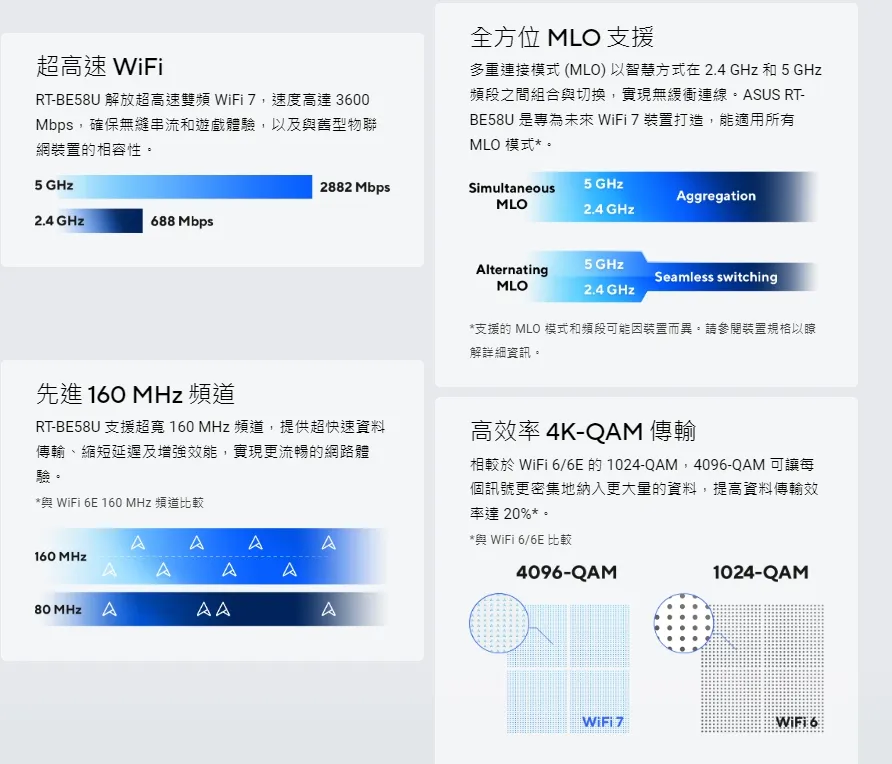

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

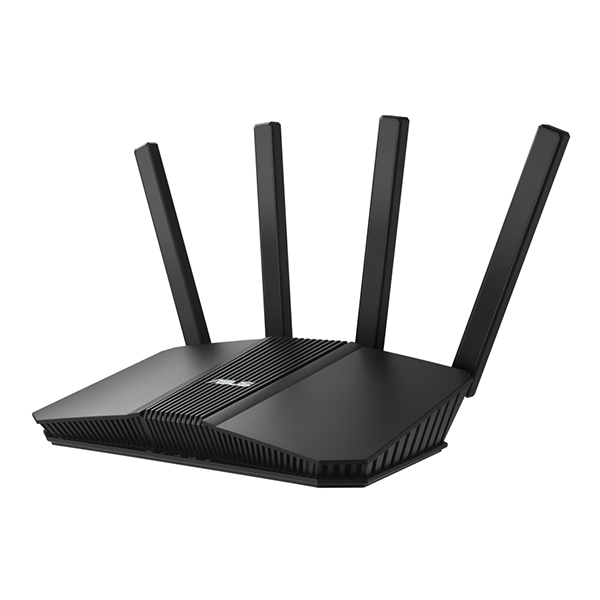

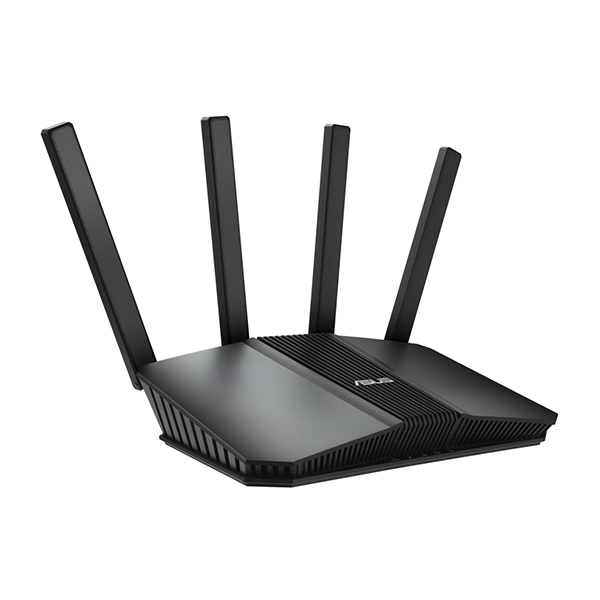

External antenna x 4
2.4GHz 2x2
5GHz 2x2
2.0 GHz quad-core processor
256 MB Flash
1 GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
2.4GHz / 5GHz
2.4 GHz
5 GHz
Wireless router mode
Access point mode
Media bridge mode

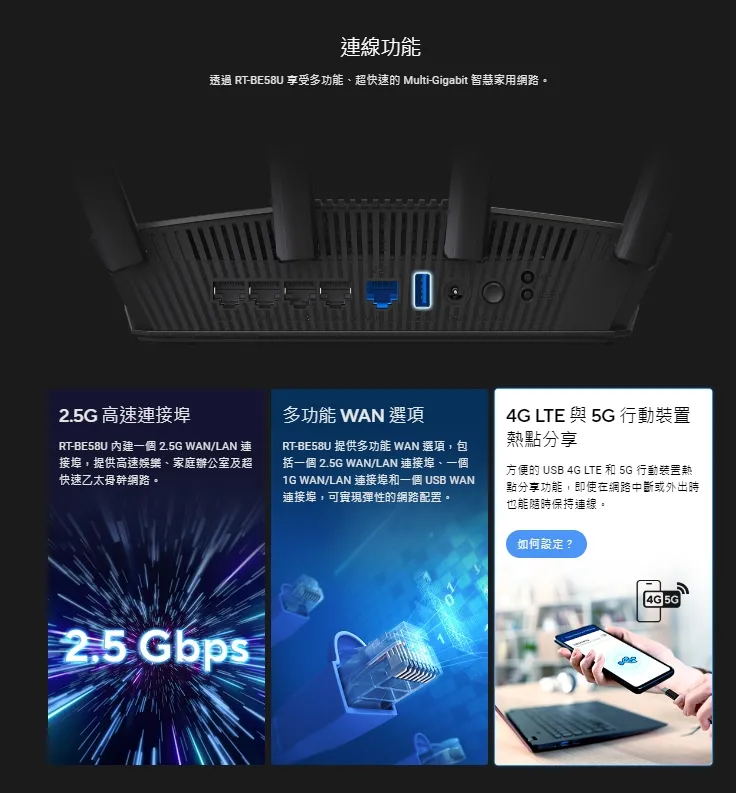

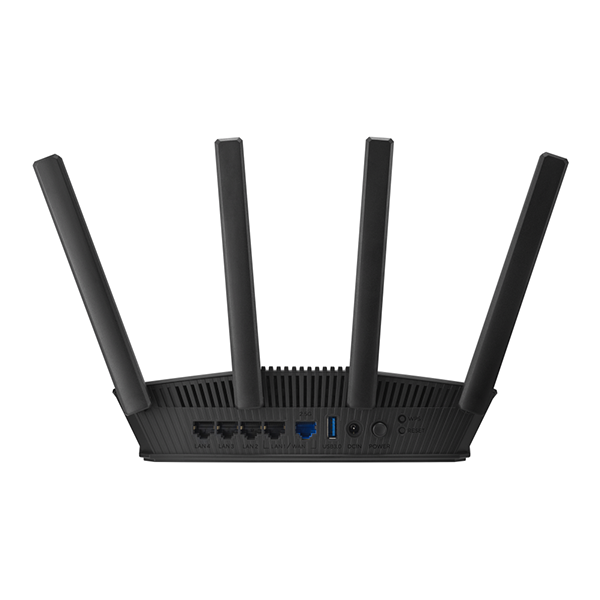

1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1
WPS Button, Reset Button, Power Button
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

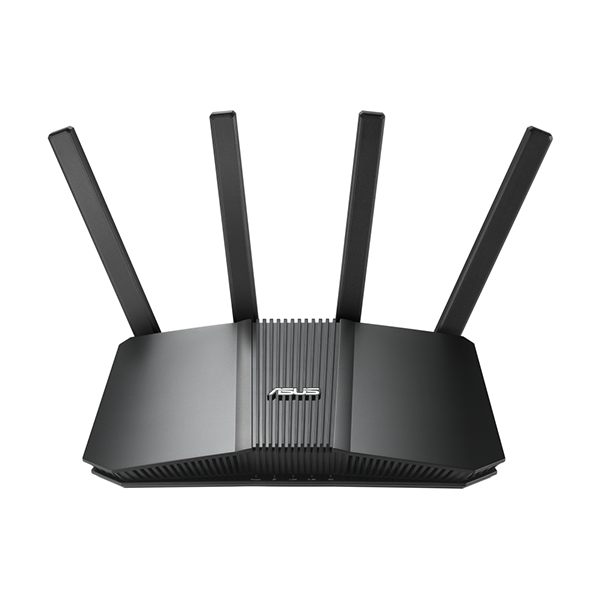

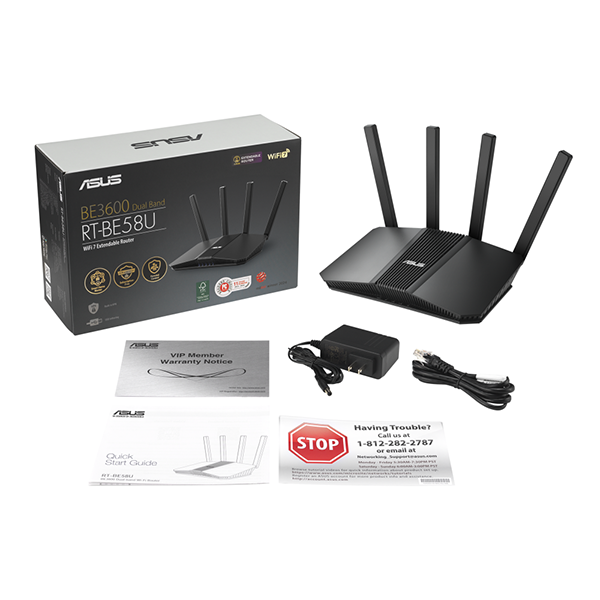

RT-BE58U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
461g
238 x 193 x 59 mm

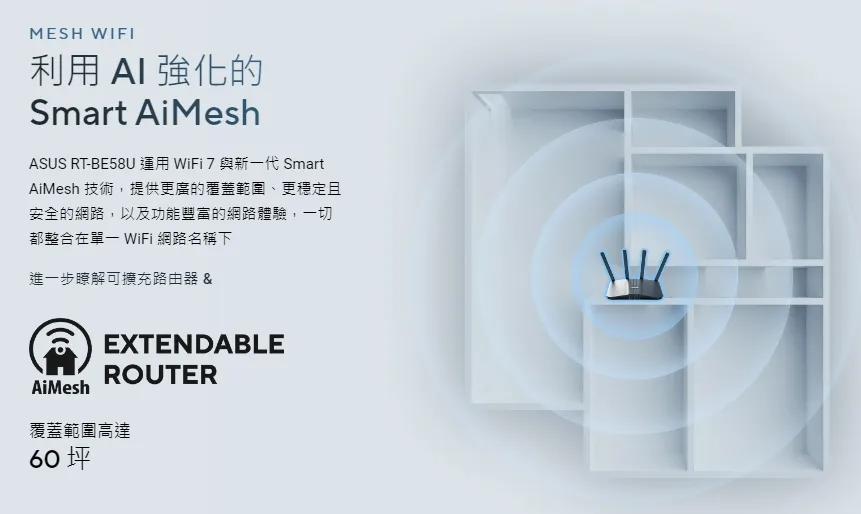

AiMesh
Primary AiMesh router
AiMesh node
Parental Control
Web & Apps Filters
Time Scheduling
Safe Browsing
Parental Control Customized Internet schedule
Guest Network
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
AiProtection
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
Website history
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE dongle
4G / 5G Auto Mobile Tethering
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
DHCP Server
有
IPTV
Manually assign IP address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC address filter
• Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
WEB: ASUSWRT
APP: ASUS Router APP
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
