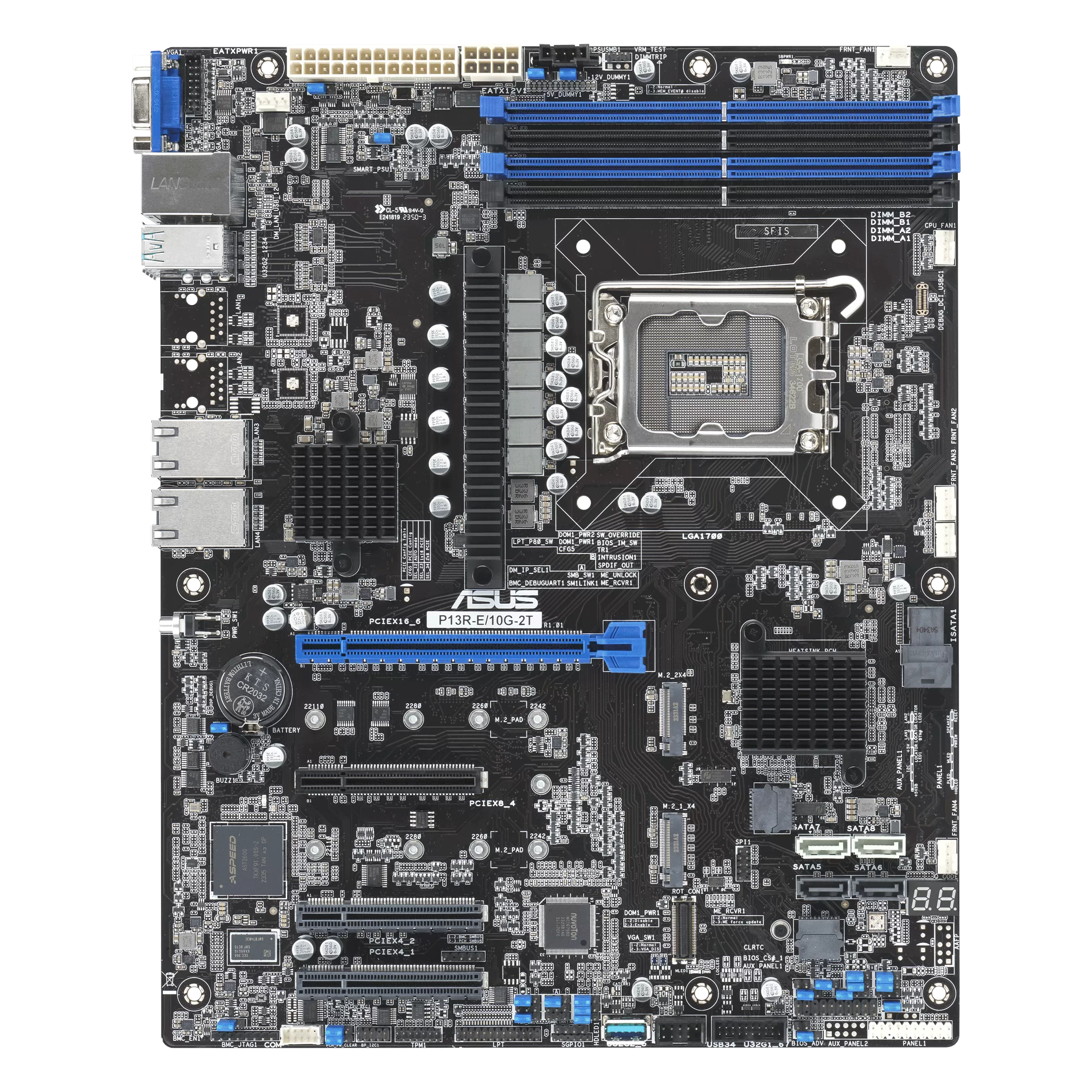

ASUS P13R-E/10G-2T 是搭載 Intel® Xeon® E-2400 LGA 1700 的 ATX 伺服器主機板，配備四個 DDR5 ECC UDIMM 插槽、兩個 M.2 插槽、兩個 10 Gb LAN 連接埠、八個 SATA 連接埠、兩個 PCIe® 5.0 插槽和兩個 PCIe® 4.0 插槽、四個 USB 10Gbps 連接埠、兩個 USB 2.0 連接埠，以及一個內建 ASUS ASMB11-iKVM 管理模組。
1/
P13R-E/10G-2T
實際價格以報價為主
ASUS 華碩 P13R-E/10G-2T 伺服器主機板
企業級伺服器原廠保固商用規格大量採購歡迎洽詢
紅利點數TWD $100
規格
loading
返回
實際價格以報價為主
ASUS 華碩 P13R-E/10G-2T 伺服器主機板
紅利點數TWD $100
規格
loading
確定並返回
商品介紹
商品規格
詢價說明
售後服務
Processor / System Bus
1 x Socket LGA1700
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic
Intel® C266 Chipset
Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB
Memory Type :
DDR5 4400 ECC UDIMM
Memory Size :
128GB
* Refer to support page for more information
Expansion Slots
Total Slot : 4
Slot 1 : PCI-E x8 (Gen4 X4 Link)
Slot 2 : PCI-E x8 (Gen4 X4 Link)
Slot 4 : PCI-E x8 (Gen5 X8 Link)
Slot 6 : PCI-E x16 (Gen5 X16 Link),
Auto switch to x8 link if slot 4 is occupied
Form Factor
ATX (12"x9.6", 305mm x 244mm)
ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
Storage
Storage Controller :
8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(22110,support NVMe PCIe x4 link)
Networking
1 x Dual Port Intel X710-AT2+ 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM (VGA from BMC)
On Board I/O
1 x VGA Header (VGA from BMC)
1 x TPM header
1 x COM port
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
1 x Internal USB3.2 Gen2 (type-A Vertical)
1 x USB3.2 Gen1 header,2 ports
1 x USB2.0 header

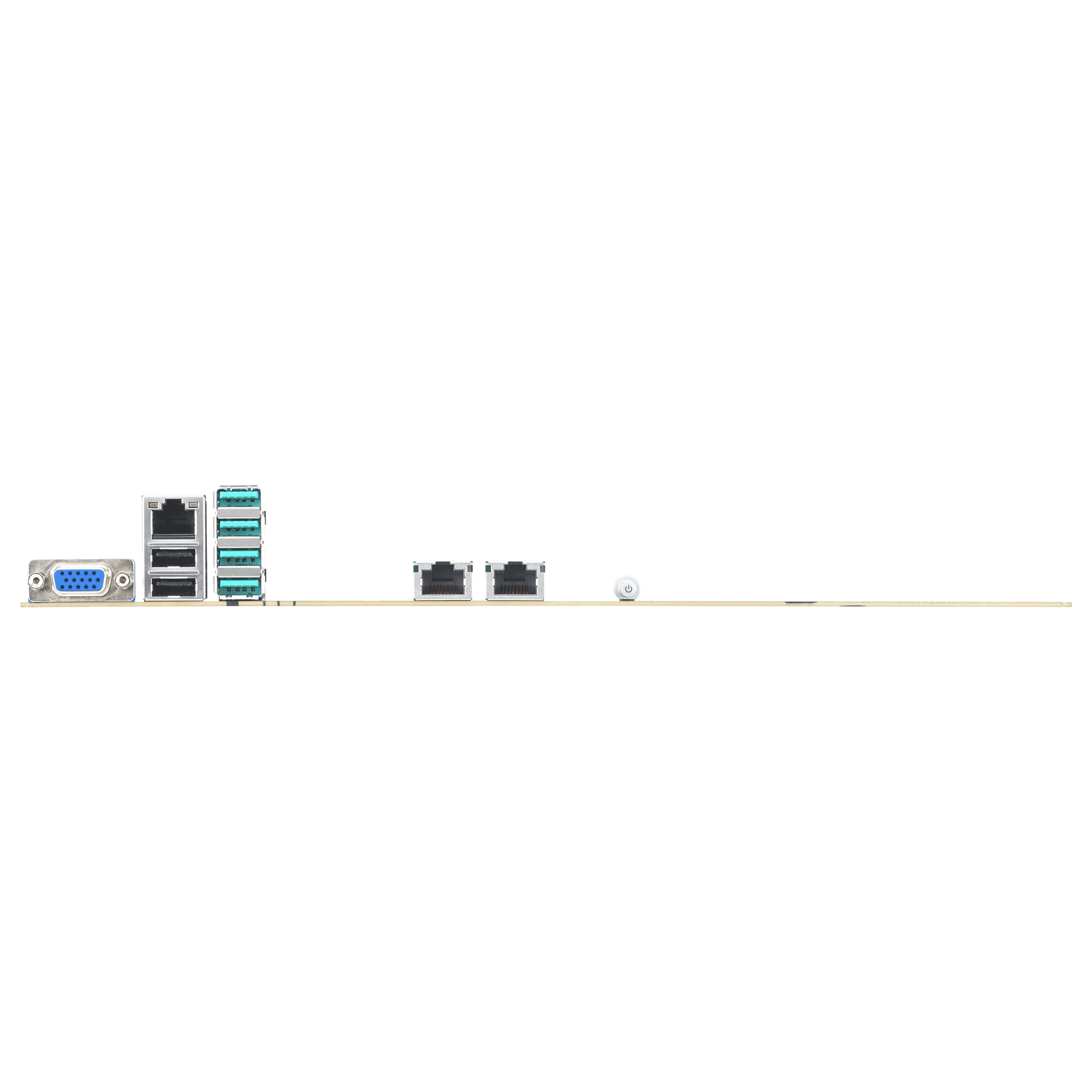

Back I/O Ports
4 x USB 3.2 Gen2
2 x USB 2.0
1 x VGA port (VGA from BMC)
2 x 10 GbE LAN + 1 x Mgmt LAN
Management Solution
On-Board ASMB11-iKVM for KVM-over-IP
Weight
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
Environment
Operation temperature: 10℃ ~ 50℃*
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories
Gift Box (1-in-1)
1 x I/O shield
1 x Plate for LGA1700
Bulk Pack (10-in-1)
1 x I/O shield
1 x Plate for LGA1700
