1 x Socket LGA1151
Intel® Xeon® processor E-2100 family
Intel® Xeon® processor E-2200 family
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
*Refer to support page for more information
中央處理器
E10
核心晶片組
Intel® C242 Chipset
記憶體
Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size :
32GB, 16GB, 8GB, 4GB UDIMM
* Refer to support page for more information
擴充槽
Total PCI/PCI-X/PCIe/PIKE Slots: 1
1 x PCIe x16 (x16 Gen3 Link)
資料儲存應用
SATA Controller :
Intel® C242 Chipset
2 x Internal 3.5” HDD
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *2
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1 )
支援的磁碟機
with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support
without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support
附屬儲存裝置 FDD/CD/DVD
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW

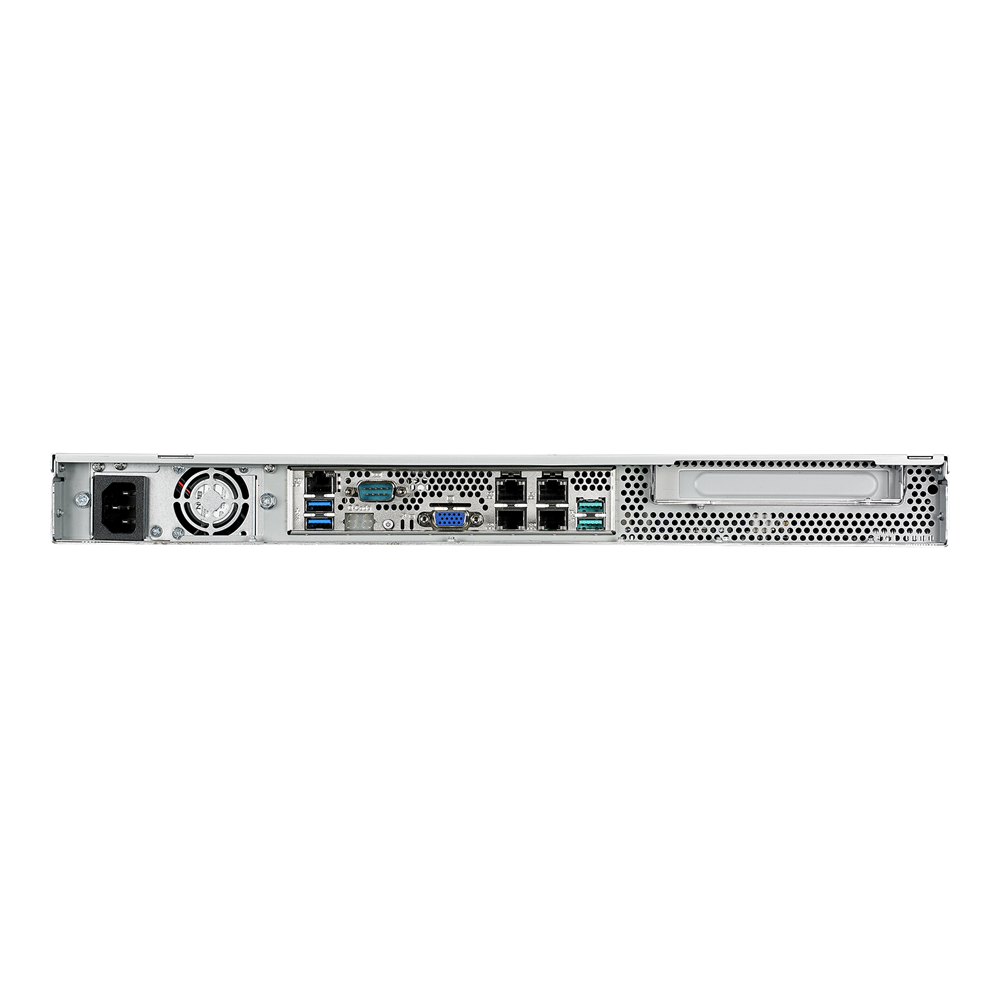

1 x External Serial Port
4 x RJ-45 ports
2 x USB 3.1 ports
2 x USB 3.0 ports
1 x VGA port
1 x RJ-45 ports (One for ASMB9-iKVM)(Optional)
Switch/LED
Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED
ASUS Control Center Enterprise (Optional)
Optional ASMB9-iKVM for KVM-over-IP
安規認證
BSMI, CE, RCM, FCC(Class B)
產品尺寸
380mm x 430mm x 44mm
14.96" x 16.93" x 1.73"
Form Factor
1U
重量
Net Weight: 7.5 Kg
Gross Weight: 11.72 Kg
電源規格
Single 250W 80 PLUS Gold Power Supply
Rating: 100-240Vac,4A ,50-60Hz, Class I
Single 350W 80 PLUS Gold Power Supply
Rating: 100-240Vac,6A-3A ,50-60Hz, Class I
運作環境
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
