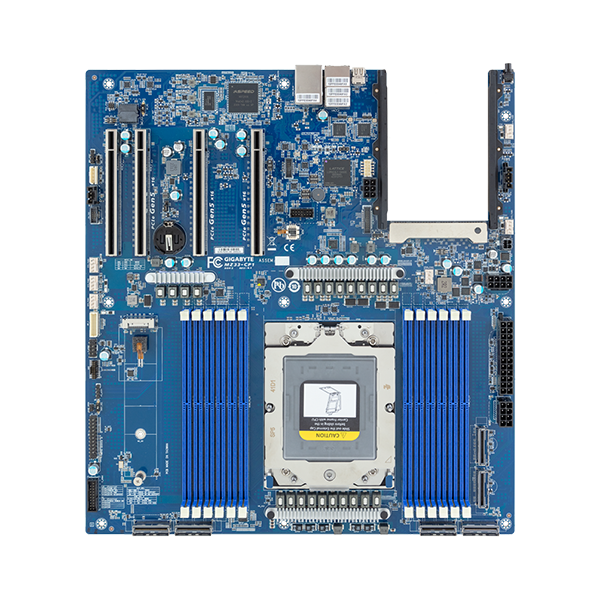

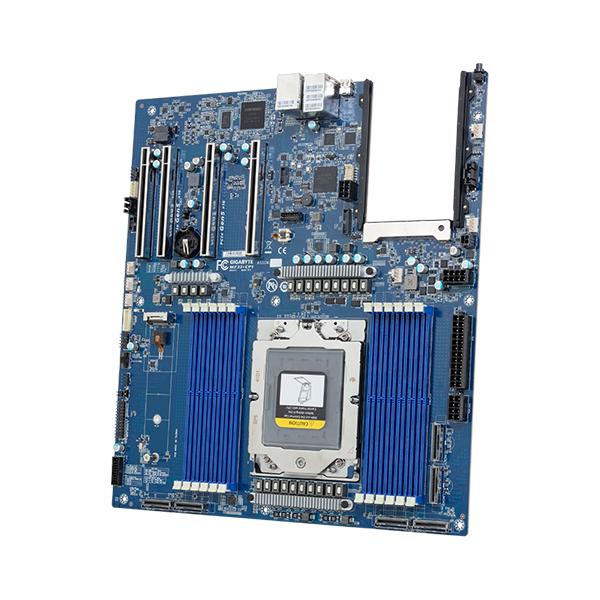

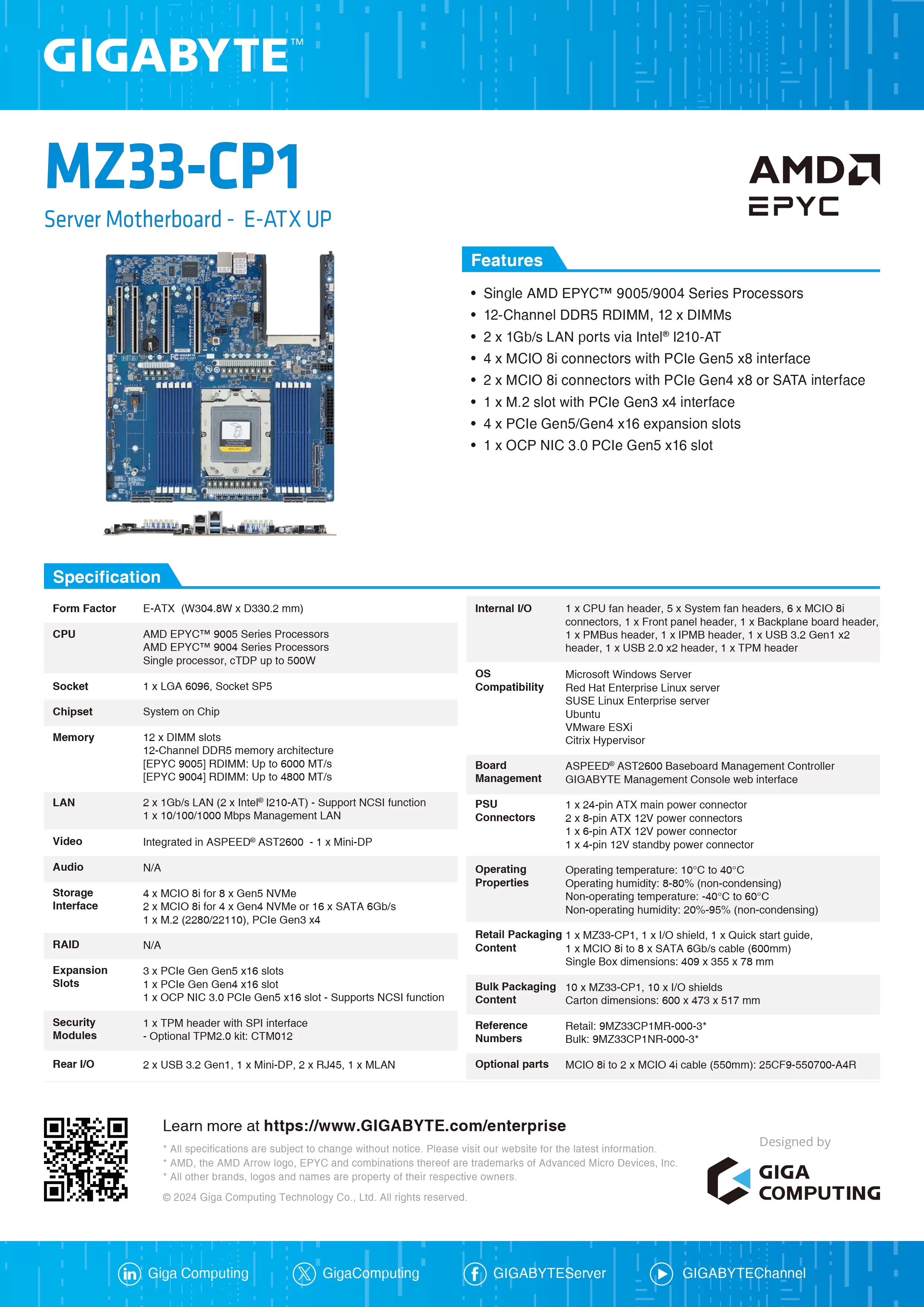

Form Factor (WxD, mm)
E-ATX
304.8 x 330.2 Processor Supported
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 500W Socket
1 x LGA 6096
Socket SP5 Chipset Description
System on Chip
Memory Type
12 x DIMM slots
DDR5 memory supported 12-Channel memory architecture AMD EPYC™ 9005: RDIMM: Up to 6000 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s Integrated Network
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function 1 x 10/100/1000 Mbps Management LAN Integrated Video Controller
Integrated in Aspeed® AST2600
- 1 x Mini-DP Integrated Audio Controller
N/A
Storage Interface
MCIO:
4 x MCIO 8i for 8 x Gen5 NVMe 2 x MCIO 8i for 4 x Gen4 NVMe or 16 x SATA M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4 Support RAID Function
N/A
PCIe Expansion Slots
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16) Slot_2: PCIe x16 (Gen5 x16) Slot_1: PCIe x16 (Gen4 x16) 1 x OCP NIC 3.0 (Gen5 x16) - Supports NCSI function 4 x MCIO 8i (Gen5 x8) [1] 2 x MCIO 8i (Gen4 x8 or SATA) [2] [1] Please refer to the optional parts for qualified cables to ensure Gen5 signal quality. [2] The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS. 歡迎您使用 上伊美辦公用品 的詢價服務!
