2 x Socket (LGA 6096)
AMD EPYC™ 9004 series(up to 400W)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
Memory
Total Slots:
24 (12 channel per CPU, 12 DIMM per CPU) Capacity:
Maximum up to 3TB per CPU socket Memory Type:
DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
* Refer to support page for more information
Expansion Slots

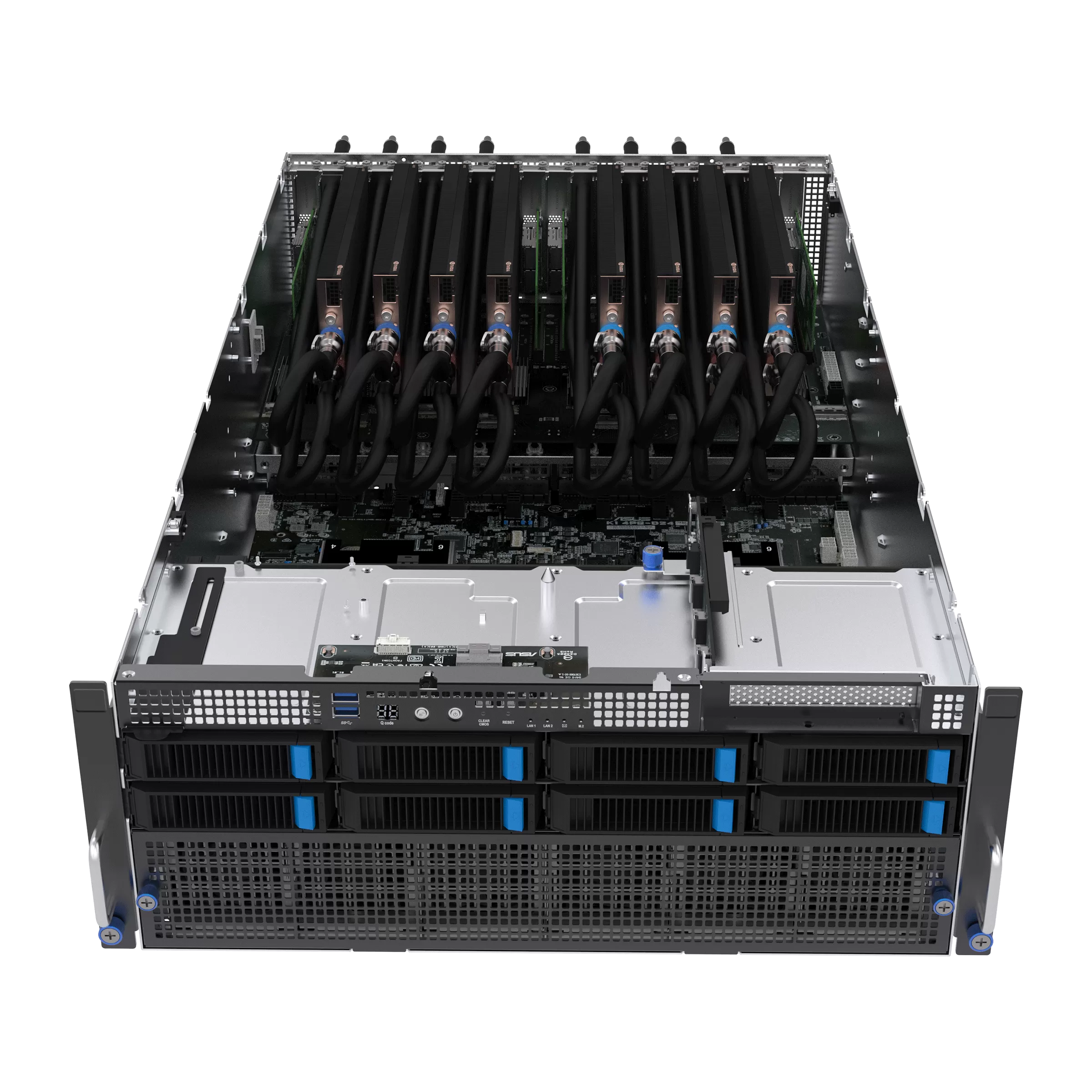

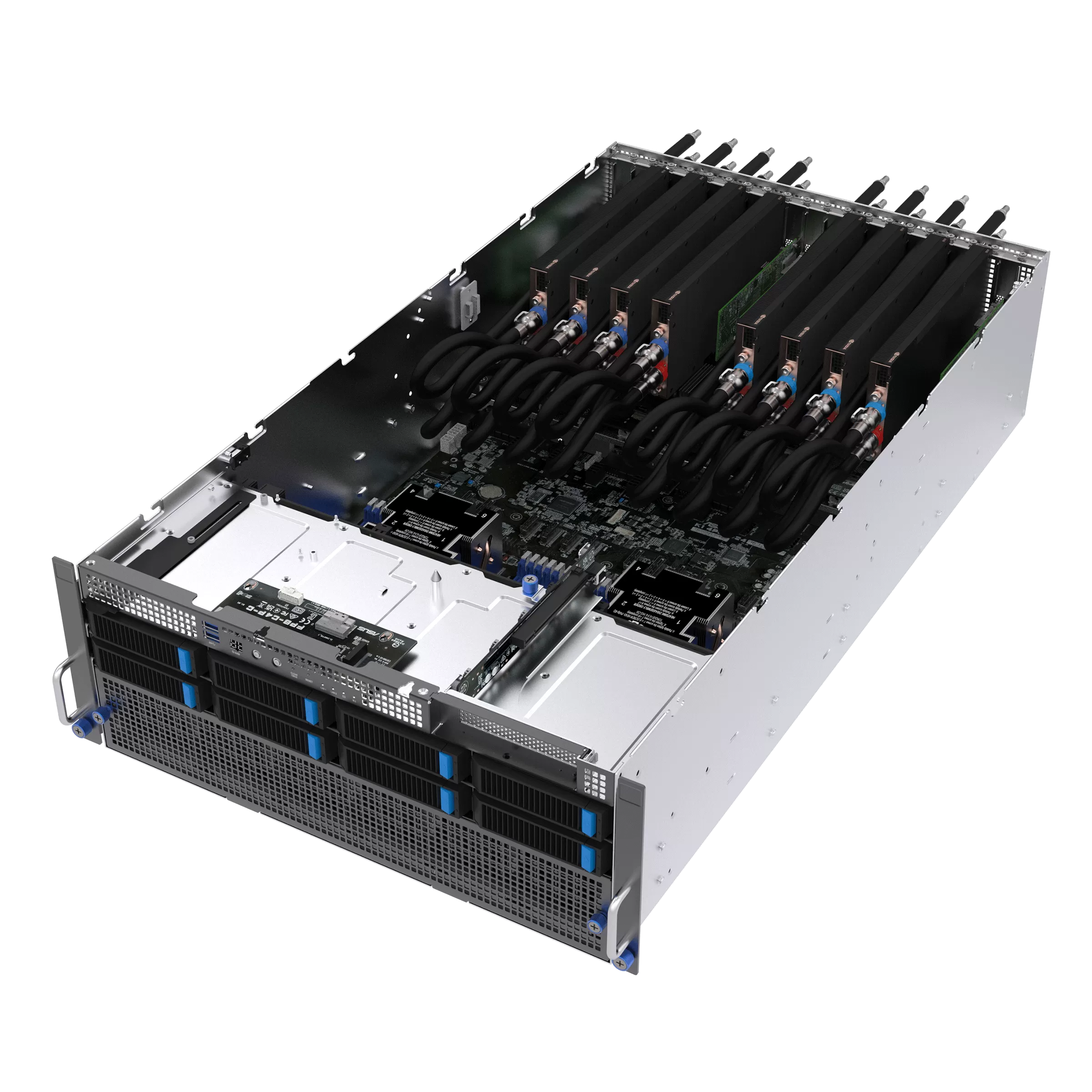

8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards
SKU-1 (5PCIe + 4NVMe)
Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards

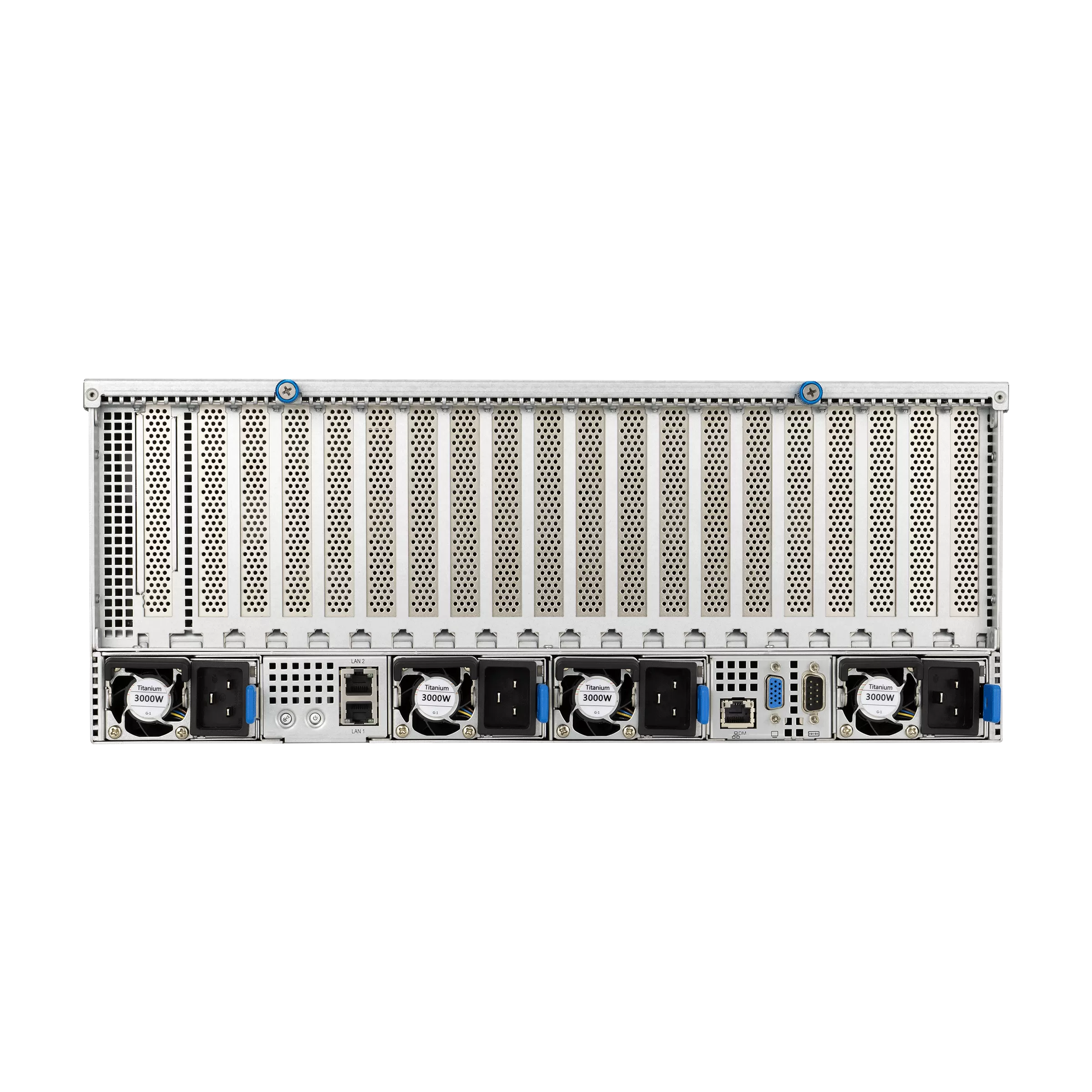

Rear: 4 x PCIe slot (Gen5 x16 link) for NIC
SKU-2 (4PCIe + 1OCP3.0)
Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards
Rear: 3 x PCIe slot (Gen5 x16 link) for NIC
1 x OCP3.0 NIC socket (Gen5 x16 link)

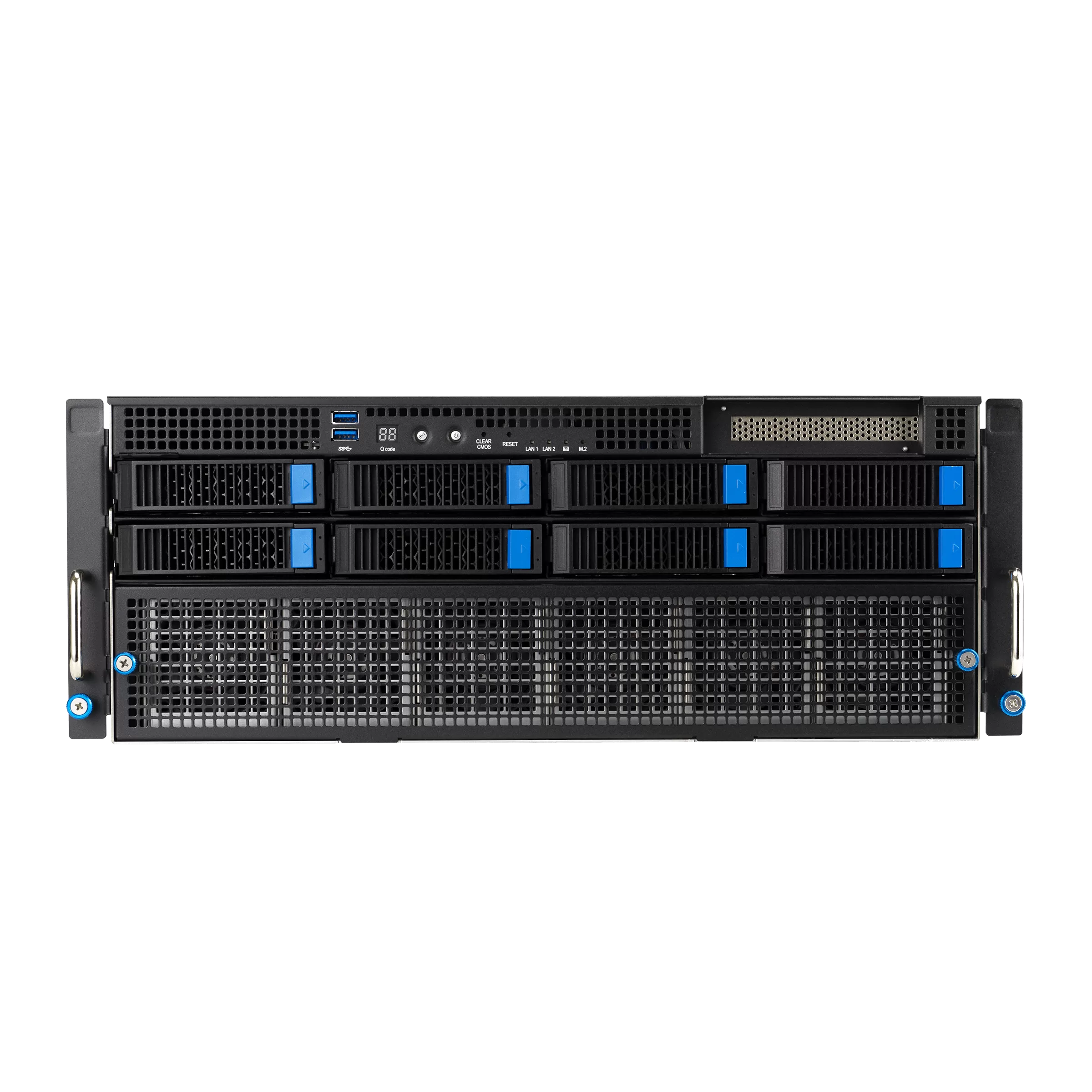

8 x 3.5"/2.5" Front Hot-swap Storage Bays
(Backplane supports up to 8 x NVMe*/SATA/SAS**)
*NVMe support on selected SKUs
**SAS support requires an optional HBA/RAID card
1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
Networking
2 x 10GbE LAN ports (RJ45, X710-AT2)
or 2 x Gigabit LAN ports (RJ45, I350-AM2)
1 x Management Port
1 x COM port
2 x 10GbE/1GbE LAN ports (RJ45, build for order)
1 x Management port (RJ45)
Switch/LED
Front :
1 x Power Button w/LED
1 x Location Button w/LED
1 x Message LED
1 x Q-Code/Port 80 LED
1 x Clear CMOS Switch
1 x Reset Switch
1 x M.2 LED Rear :
1 x Power Button w/LED
1 x Location Button w/LED
