ASUS Control Center Enterprise (in-band)
ASMB10-iKVM for KVM-over-IP (out-of-band/BMC AST2600)
Regulatory Compliance
BSMI, CE, RCM, FCC(Class A)
產品尺寸
800mm x 440mm x 88.9mm (2U)
31.50" x 17.22" x 3.5"
主機板尺寸
2U
重量
Net Weight: 34 Kg.
Gross Weight: 44 Kg.

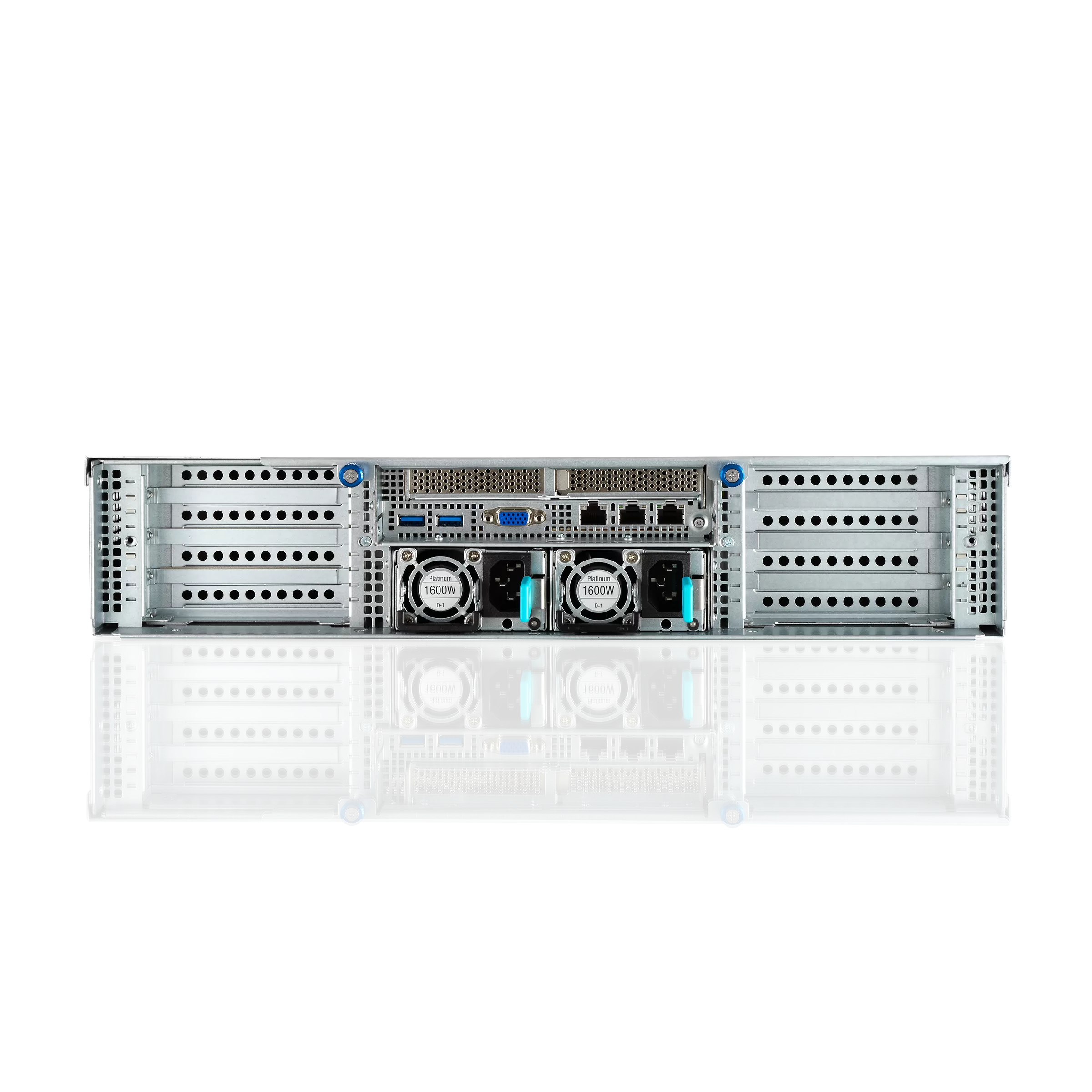

電源規格
1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz
1+1 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz
運作環境
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
備註
*Users need to remove Slimline cables from the PCIe riser board, and re-connect the cables to the backplane for total 4 x NVMe devices.
** There is a MicroSD slot on motherboard allowing you to install a MicroSD card to log BMC events.
***We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail.
