1 x Socket LGA1200
Intel® Xeon® processor E-2300 family(95W)
Intel® Pentium Processors
*Refer to support page for more information
核心晶片組
Intel® C256 Chipset
記憶體
Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM Memory Type :
DDR4 3200 ECC UDIMM Memory Size :
32GB, 16GB, 8GB
* Refer to support page for more information
擴充槽
Total:4
2 x PCI-E x4 slot, x8 Gen3 Link
1 x PCI-E x8 slot, x8 Gen4 Link
1 x PCI-E x16 slot, x16 Gen4 Link
(Auto switch to x8 link if slot 4 is occupied )
資料儲存應用
SATA Controller :
Intel® C256 Chipset
8 x SATA3 6Gb/s ports

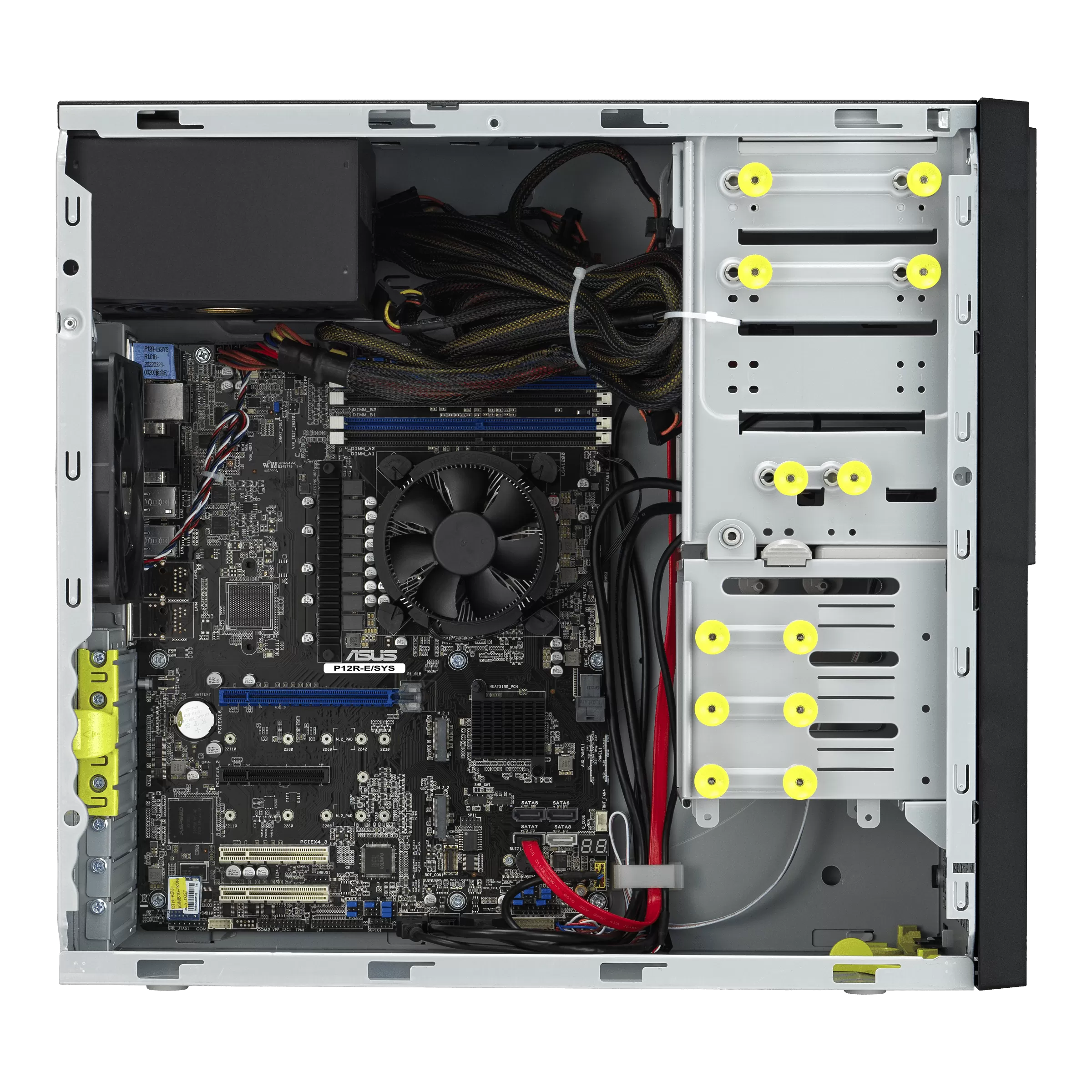

支援的磁碟機
3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays
1 x Internal 2.5" drive bay
2 x M.2 (Up to 22110)
Gen4 x4 Link and Gen3 x2 Link
gray SATA port will disable when M.2 is SATA signal
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Headphone port
1 x Microphone port

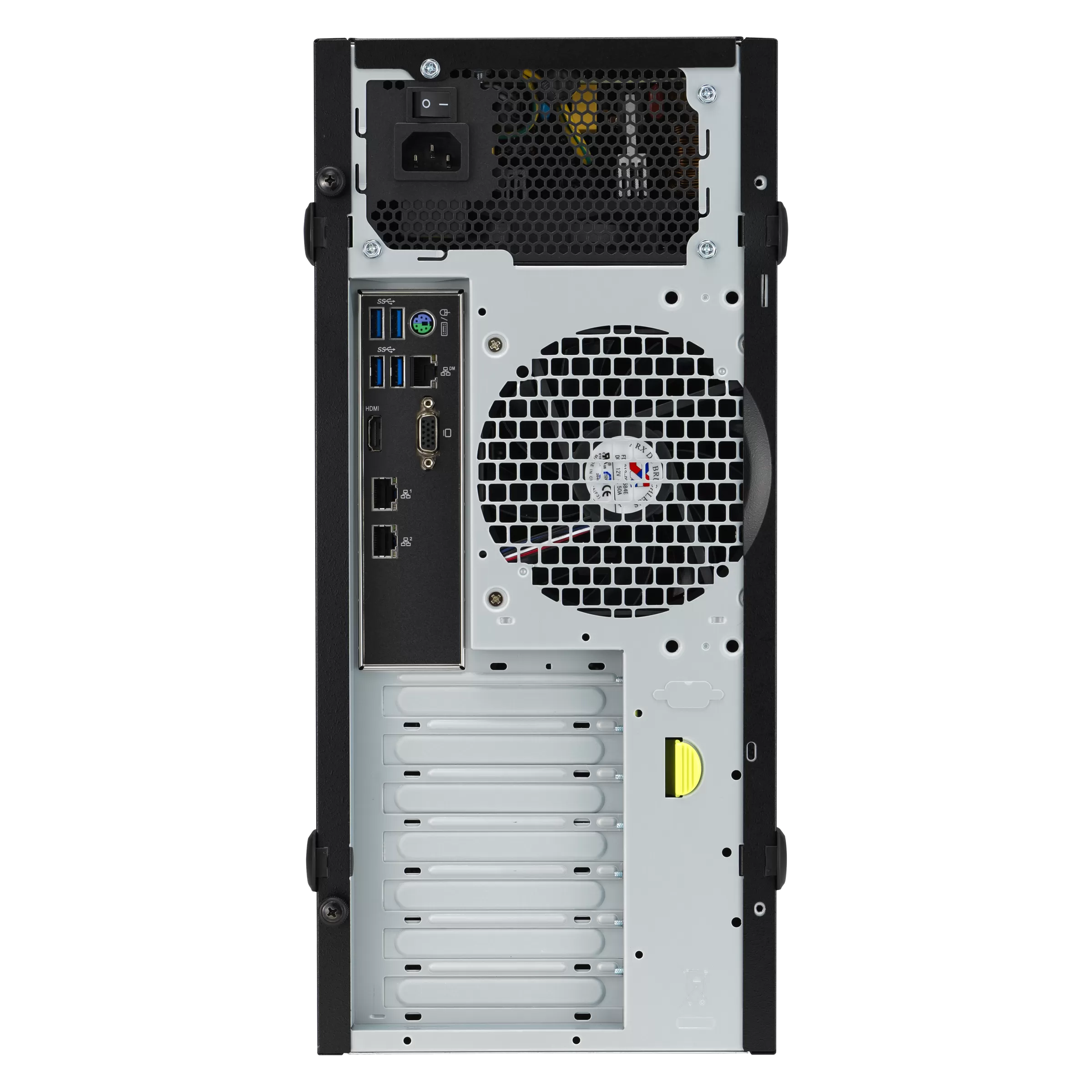

Rear I/O Ports
2 x USB 3.2 Gen2 ports
2 x USB 3.2 Gen1 ports
1 x VGA port (support by ASMB10)
1 x HDMI port from CPU (useable only with iGPU)
2 x LAN Ports
1 x PS/2 Keyboard/ Mouse Port
Switch/LED

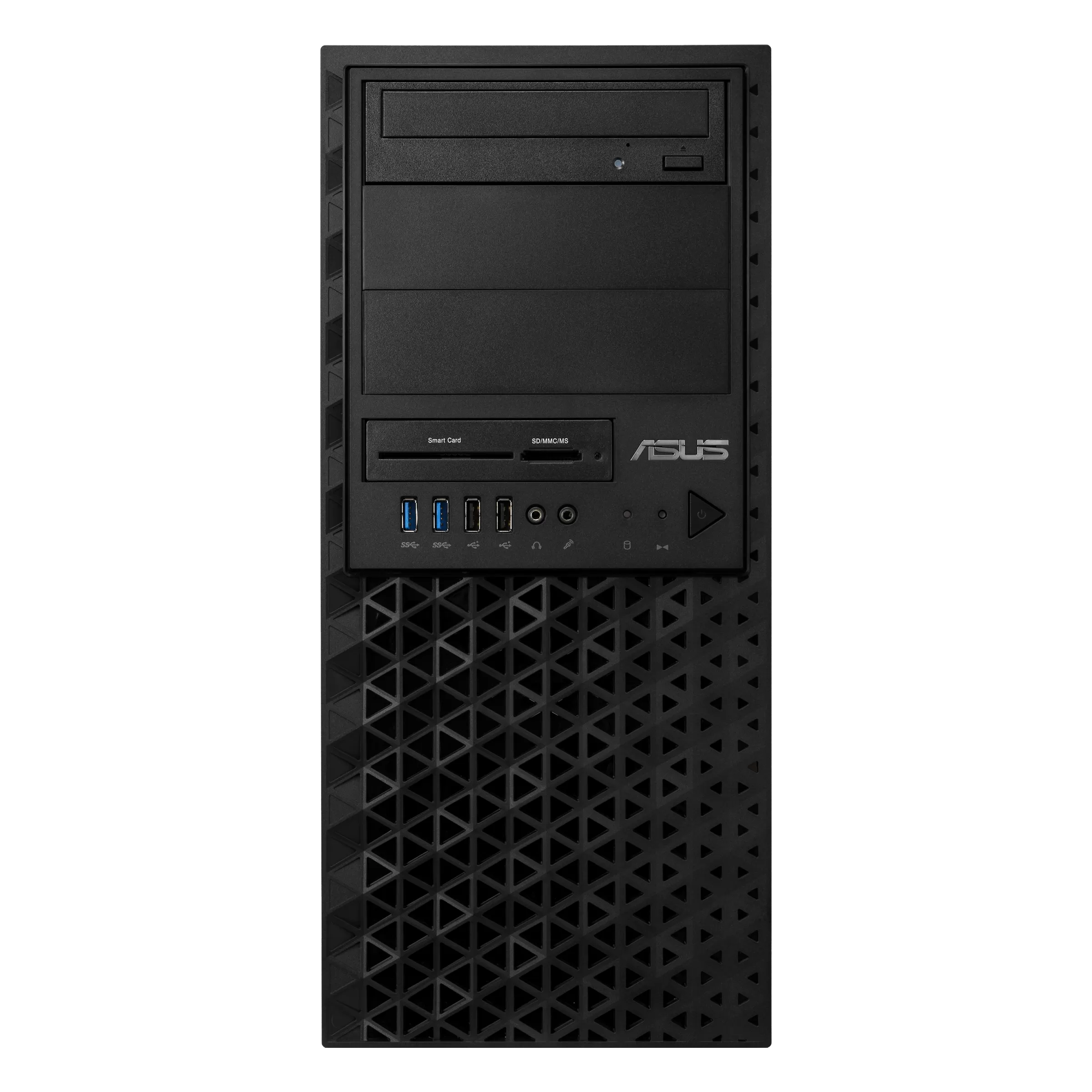

Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED
Bundle ASMB10-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
安規認證
BSMI, CE, FCC(Class B)
產品尺寸
423mm x 190mm x 435mm
16.65" x 7.48" x 17.1"
重量
Net Weight : 11.56 KG
Gross Weight : 14.68 KG
電源規格
300W 80PLUS Single Power Supply, Bronze
Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I
550W/750W 80PLUS Single Power Supply, Gold
Rating: 100-240Vac,50-60 Hz,9-4.5A
運作環境
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
選購配件
Smart Card Reader
Anti-Virus CD pack
Keyboard and mouse
DVD-RW
Print port cable
Com port cable
