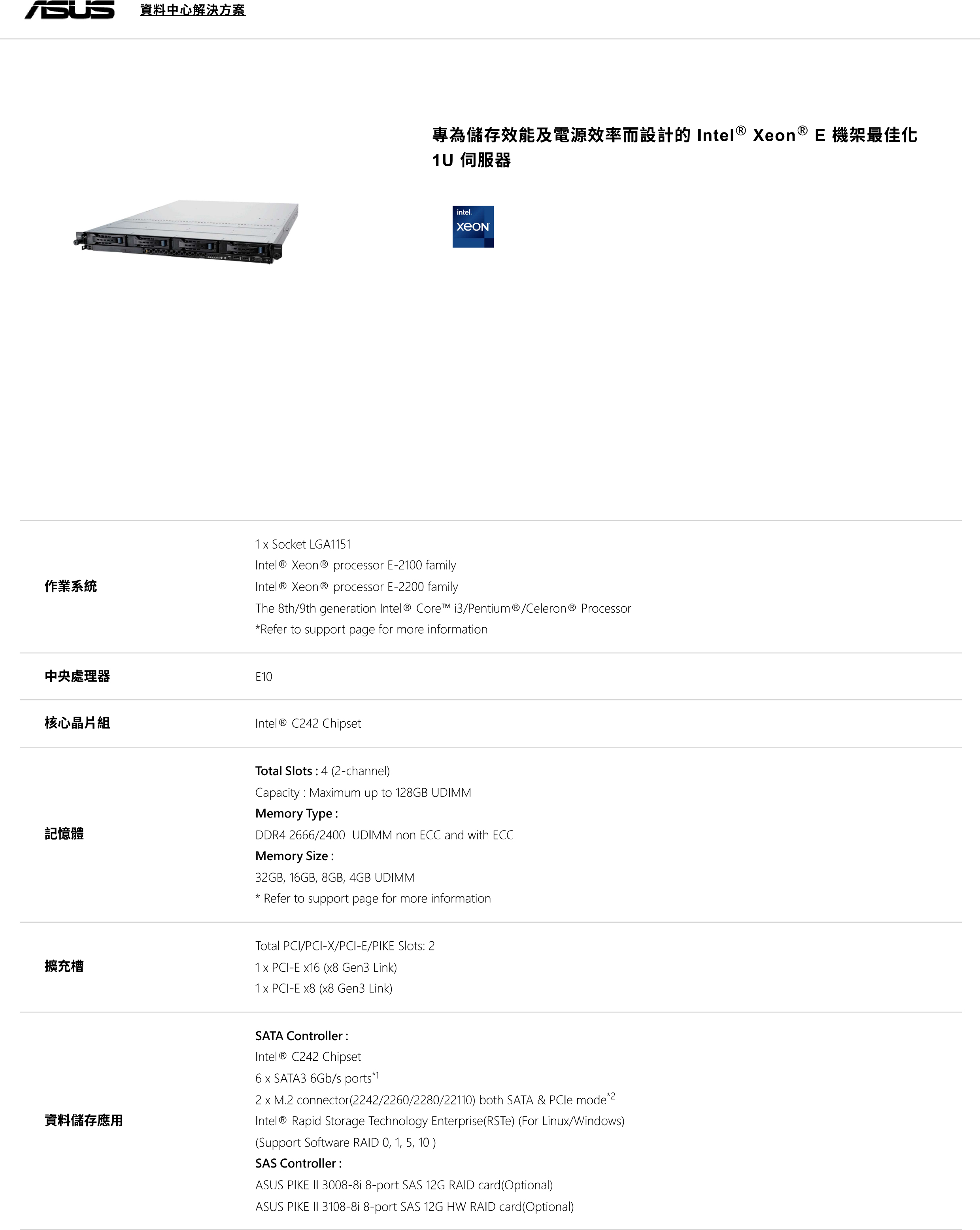

1 x Socket LGA1151
Intel® Xeon® processor E-2100 family
Intel® Xeon® processor E-2200 family
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
*Refer to support page for more information
中央處理器
E10
核心晶片組
Intel® C242 Chipset
記憶體
Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size :
32GB, 16GB, 8GB, 4GB UDIMM
* Refer to support page for more information
擴充槽
Total PCI/PCI-X/PCI-E/PIKE Slots: 2
1 x PCI-E x16 (x8 Gen3 Link)
1 x PCI-E x8 (x8 Gen3 Link)
資料儲存應用
SATA Controller :
Intel® C242 Chipset
6 x SATA3 6Gb/s ports*1
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode*2
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 ) SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

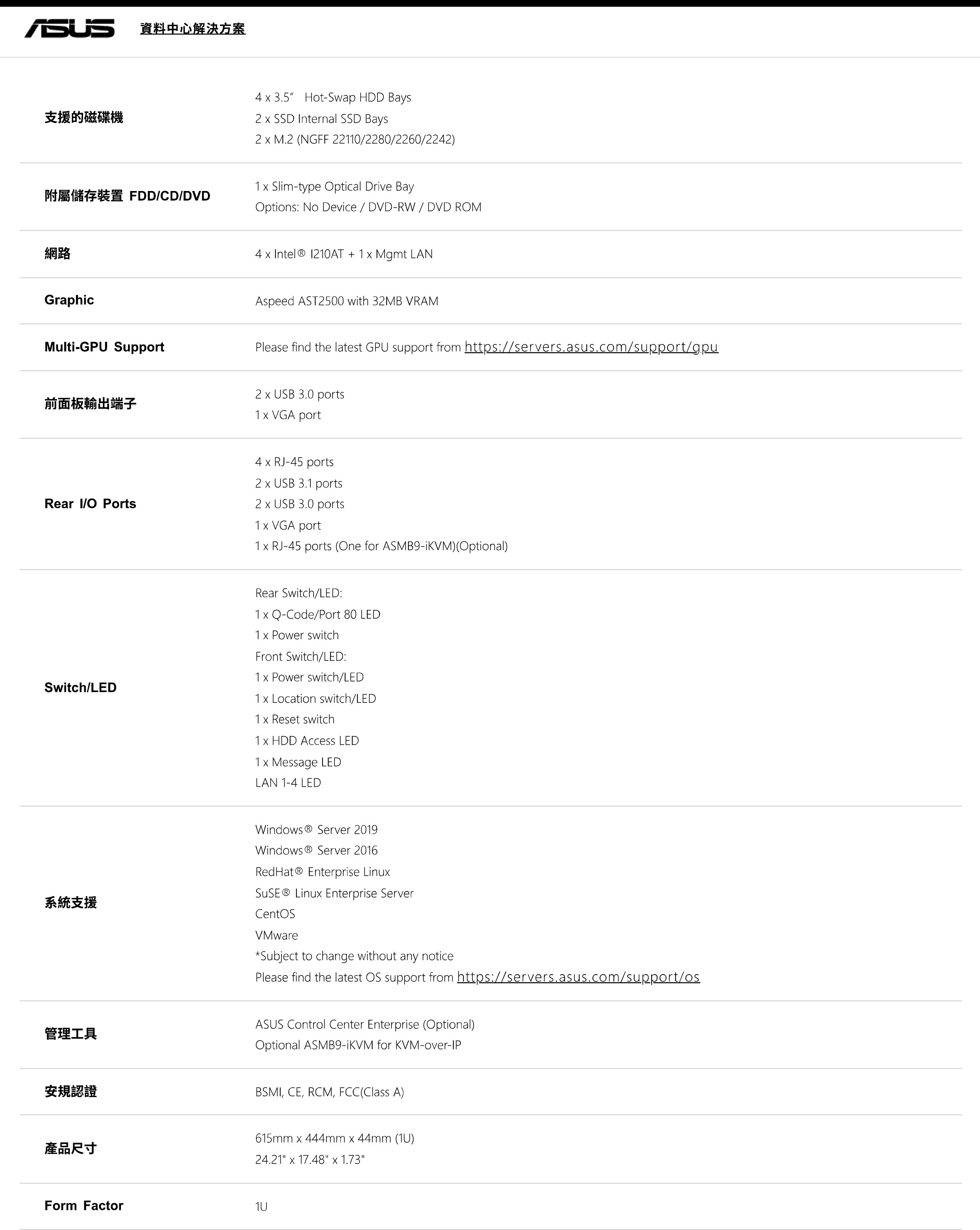

支援的磁碟機

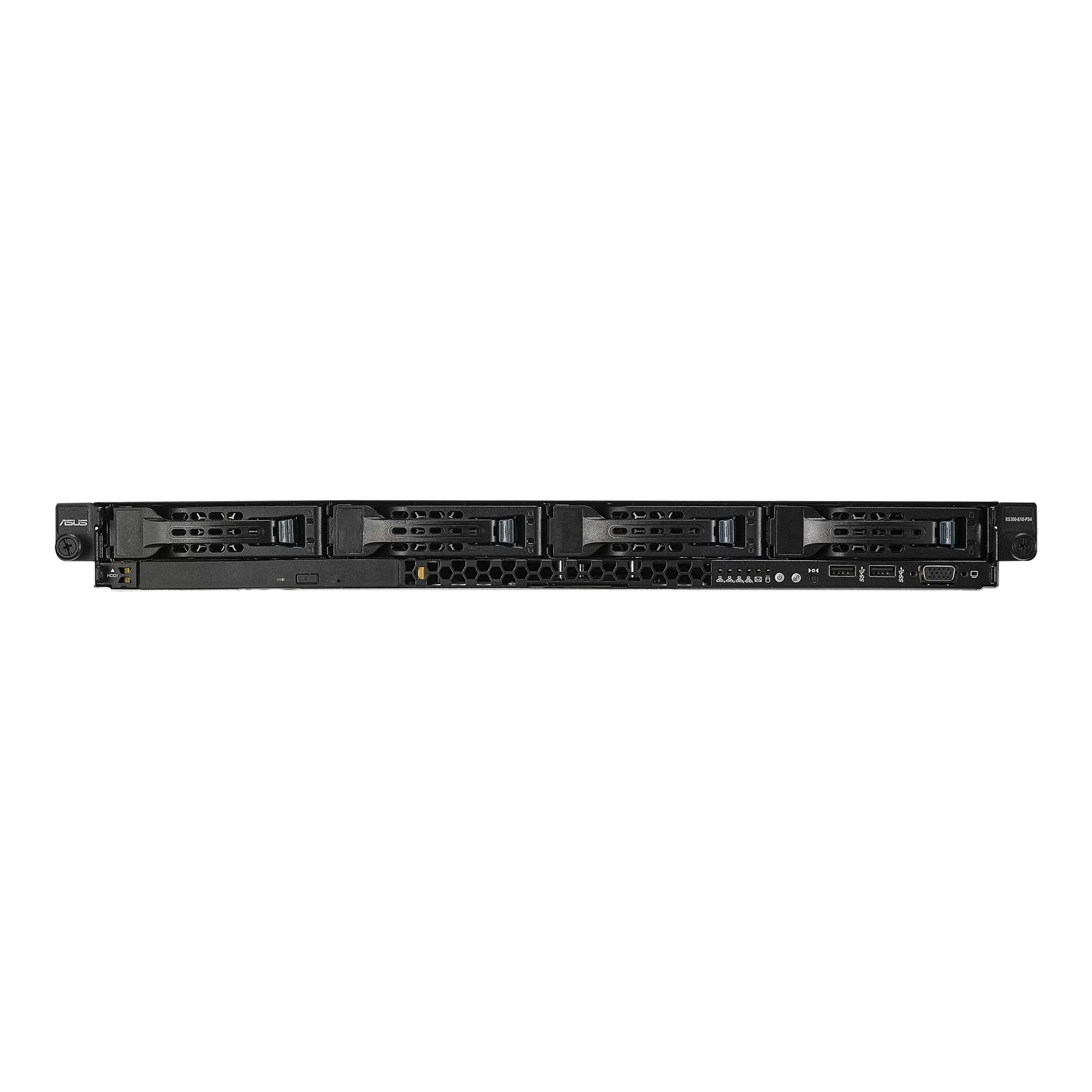

4 x 3.5” Hot-Swap HDD Bays
2 x SSD Internal SSD Bays
2 x M.2 (NGFF 22110/2280/2260/2242)
附屬儲存裝置 FDD/CD/DVD
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD ROM

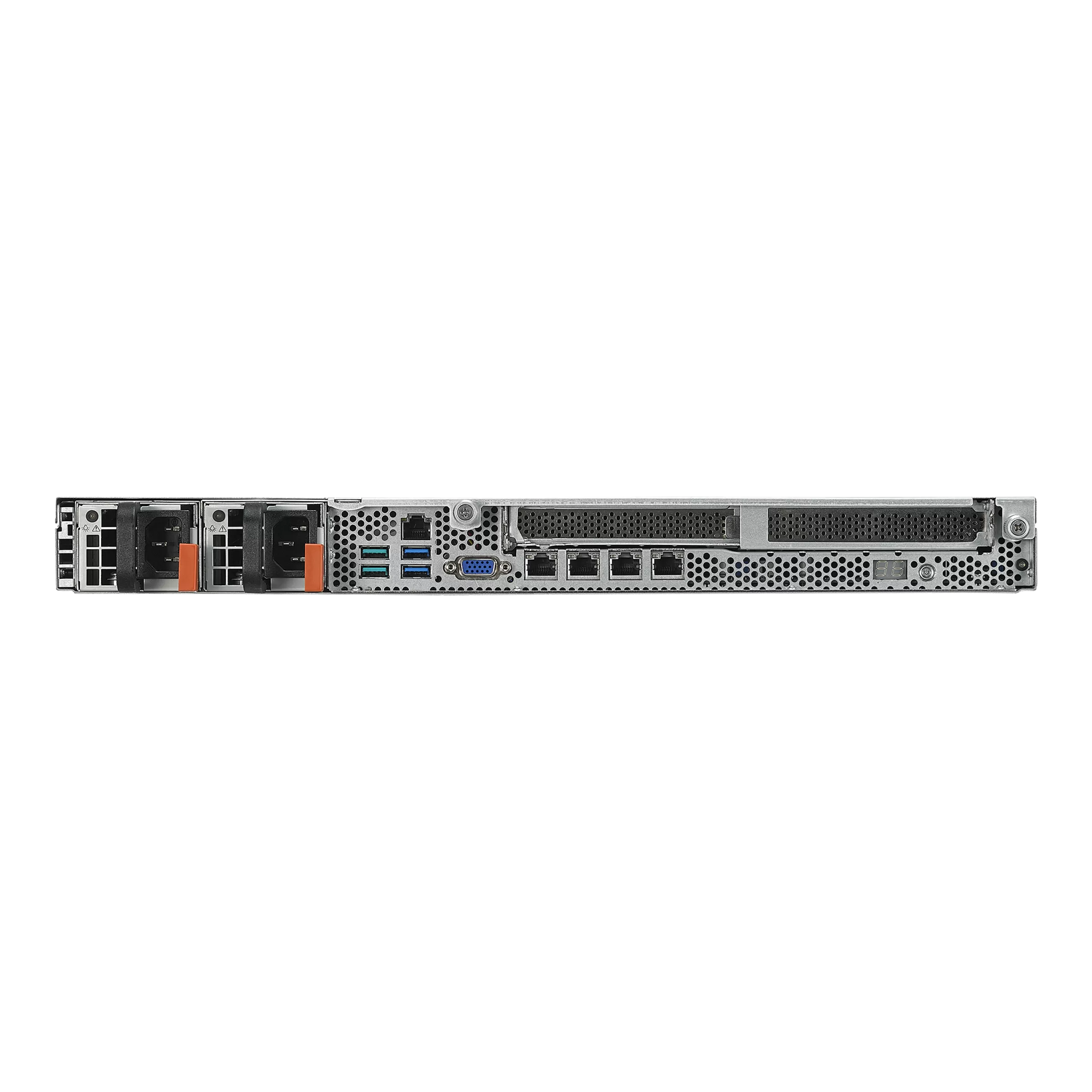

4 x RJ-45 ports
2 x USB 3.1 ports
2 x USB 3.0 ports
1 x VGA port
1 x RJ-45 ports (One for ASMB9-iKVM)(Optional)
Switch/LED
Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED
系統支援
Windows® Server 2019
Windows® Server 2016
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
VMware
*Subject to change without any notice
Please find the latest OS support from https://servers.asus.com/support/os
管理工具
ASUS Control Center Enterprise (Optional)
Optional ASMB9-iKVM for KVM-over-IP
安規認證
BSMI, CE, RCM, FCC(Class A)
產品尺寸
615mm x 444mm x 44mm (1U)
24.21" x 17.48" x 1.73"
Form Factor
1U
重量

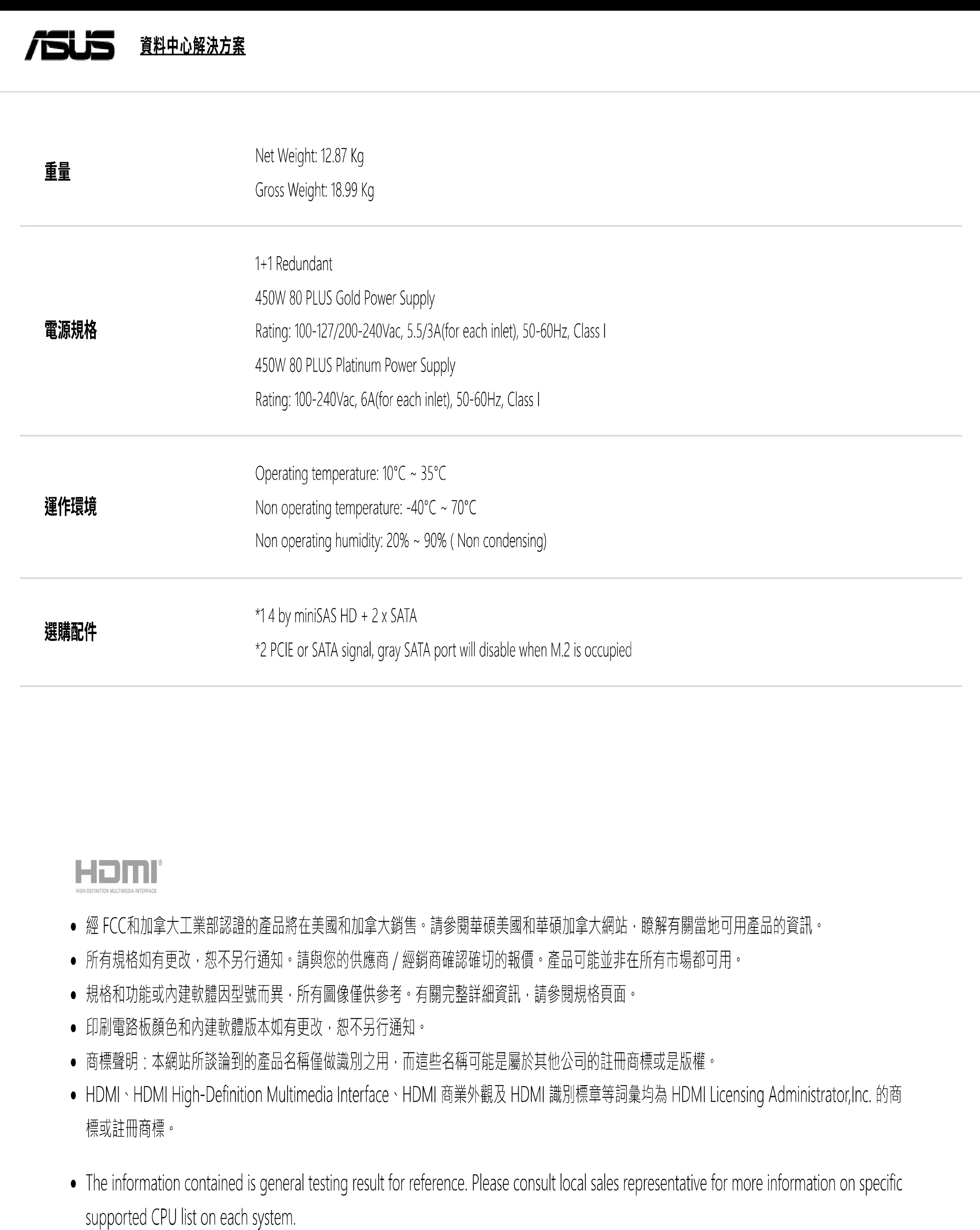

Net Weight: 12.87 Kg
Gross Weight: 18.99 Kg
電源規格
1+1 Redundant
450W 80 PLUS Gold Power Supply
Rating: 100-127/200-240Vac, 5.5/3A(for each inlet), 50-60Hz, Class I
450W 80 PLUS Platinum Power Supply
Rating: 100-240Vac, 6A(for each inlet), 50-60Hz, Class I
運作環境
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
選購配件
*1 4 by miniSAS HD + 2 x SATA
*2 PCIE or SATA signal, gray SATA port will disable when M.2 is occupied
