Single AMD EPYC™ 7003/7002 Series Processors
8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
2 x 1Gb/s LAN ports via Intel® I210-AT
4 x SlimSAS with 16 x SATA 6Gb/s ports
1 x M.2 slot with PCIe Gen3 x4 interface
5 x PCIe Gen3 x16 and x8 expansion slots
1/
U50060016

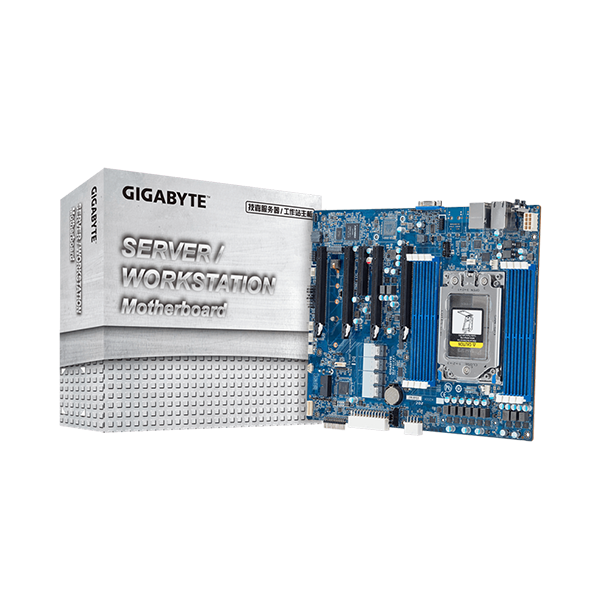

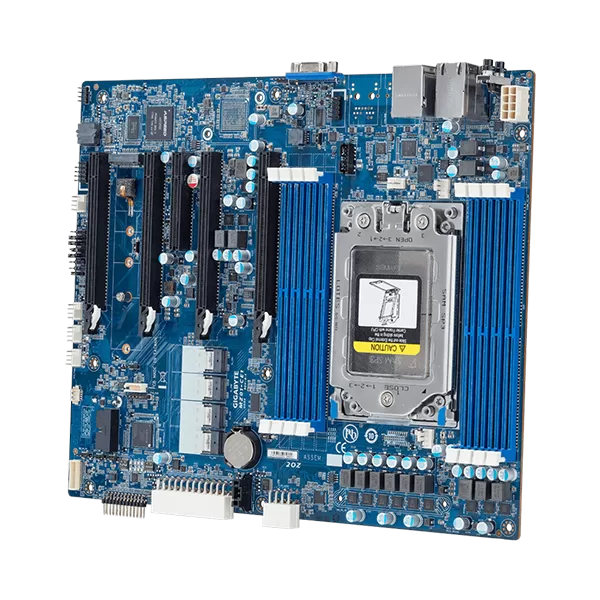

GIGABYTE 技嘉 AMD MZ01-CE1 伺服器主機板
原廠保固品質保證大量採購歡迎洽詢
紅利點數TWD $100
規格
loading
返回
GIGABYTE 技嘉 AMD MZ01-CE1 伺服器主機板
紅利點數TWD $100
規格
loading
確定並返回
商品介紹
商品規格
詢價說明
售後服務
Board Size
ATX
305W x 244D mm
Processor Supported
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
Note: Please make sure the fansink supports over 280W.
Socket
1 x LGA 4094
Socket SP3
Chipset Description
System on Chip
Memory Type
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
Integrated Network
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
