IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
BE9700 ultimate BE performance : 1032+2882+5764 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps

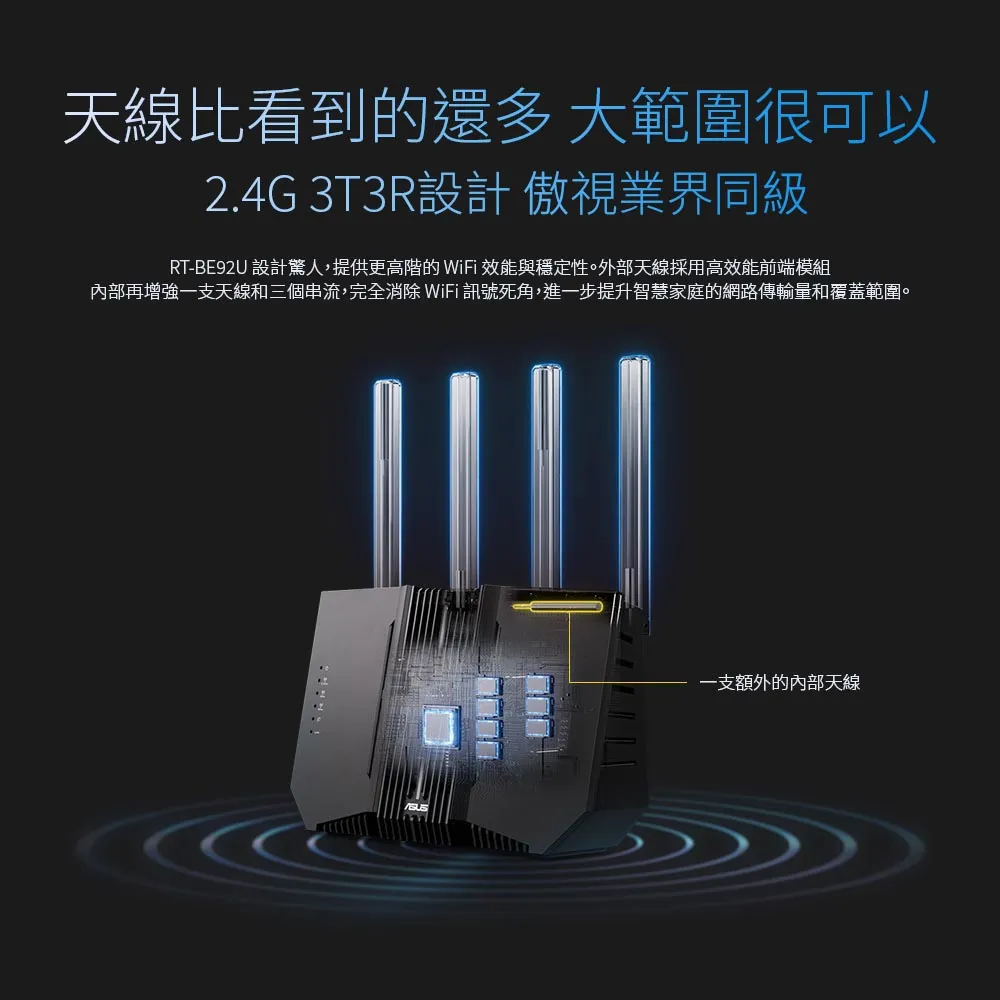

External antenna x 4
2.4GHz 3x3
5GHz 2x2
6GHz 2x2
2.0GHz quad-core processor
256 MB Flash and 1 GB DDR4 RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

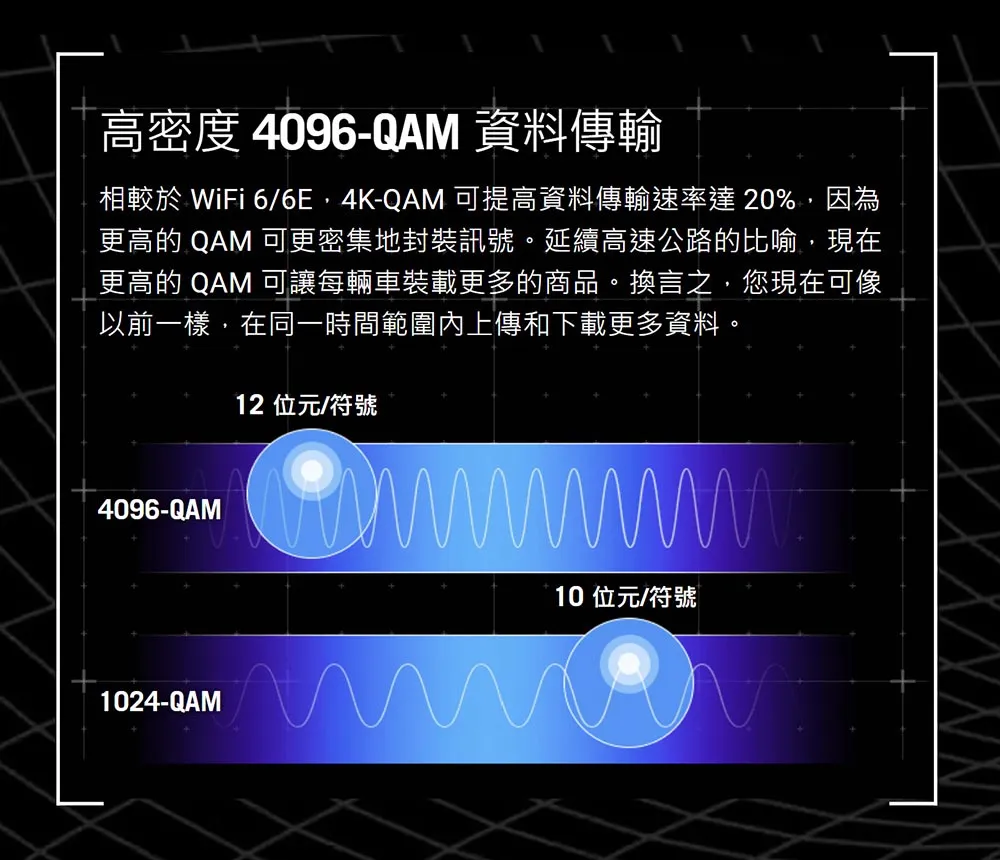

4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
2.4 GHz
5 GHz
6 GHz
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

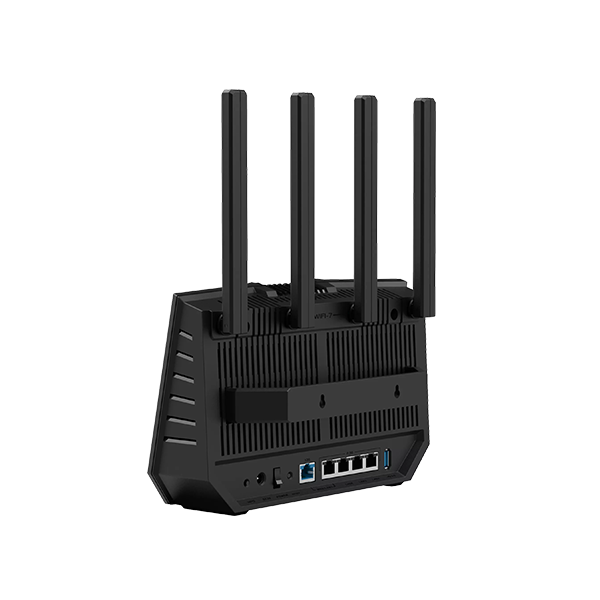

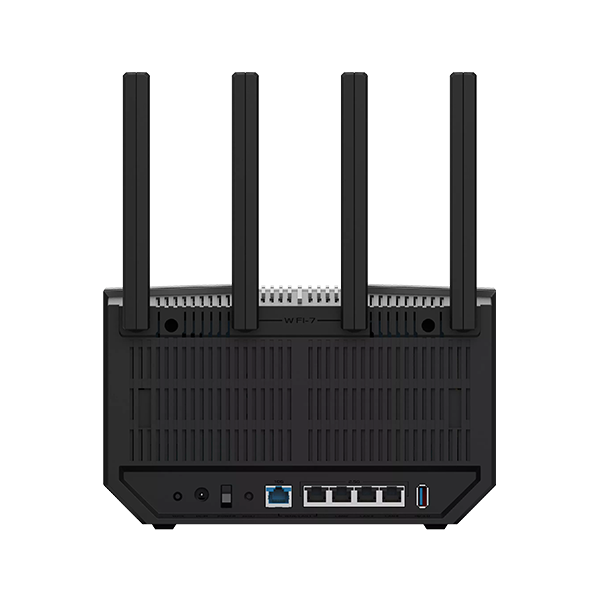

1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1
WPS Button, Reset Button, Power Switch
Power x1
WAN x1
LAN x1
2.4GHz x1
5GHz x1
6GHz x1
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 3 A current

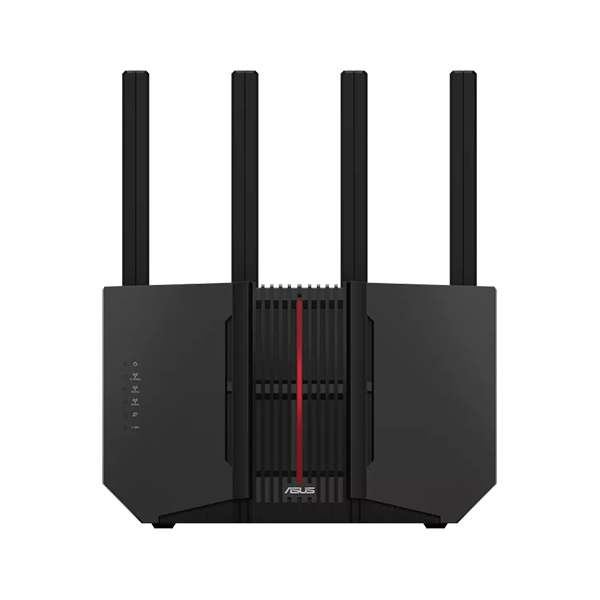

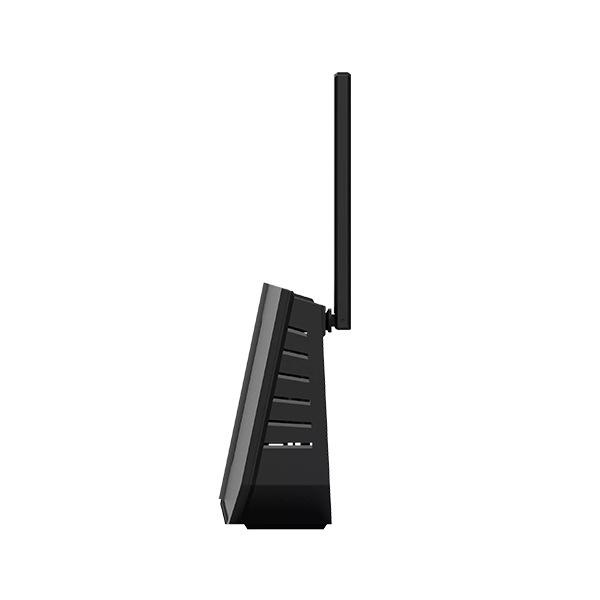

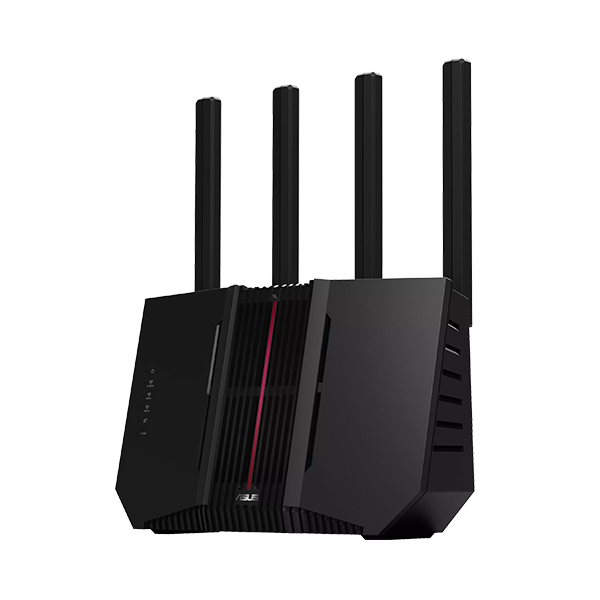

RT-BE92U WiFi 7 Tri-band Router

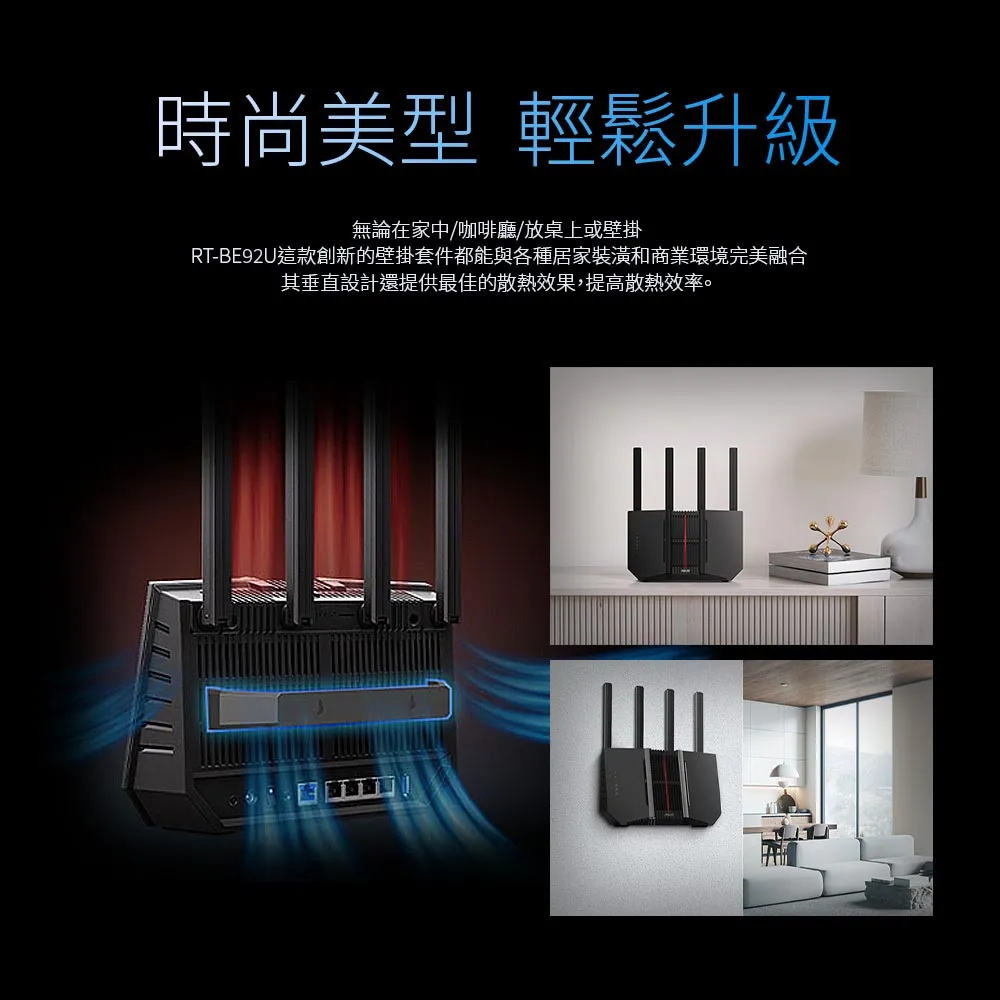

wall mount kit
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch

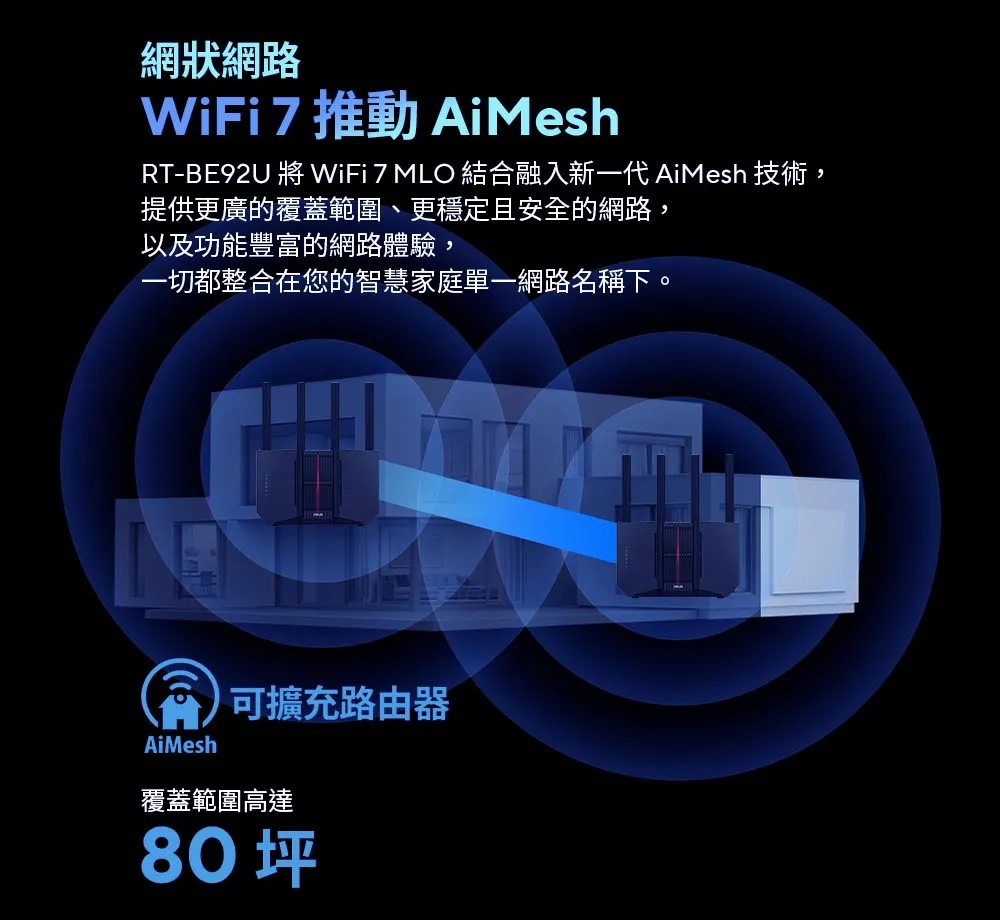

AiMesh
Primary AiMesh router
AiMesh node
Parental Control
Web & Apps Filters
Time Scheduling
Safe Browsing
Parental Control Customized Internet schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3
Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal
AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

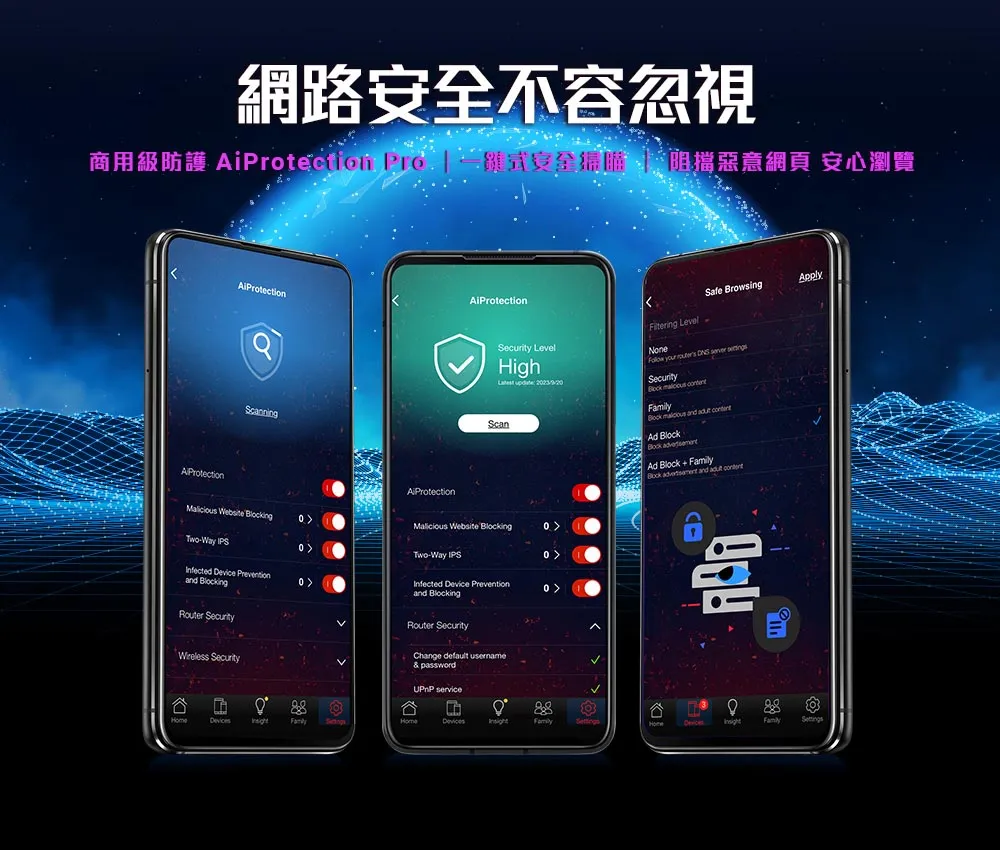

AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
Website history
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
3G/4G LTE dongle
4G / 5G Auto Mobile Tethering
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
DHCP Server
有

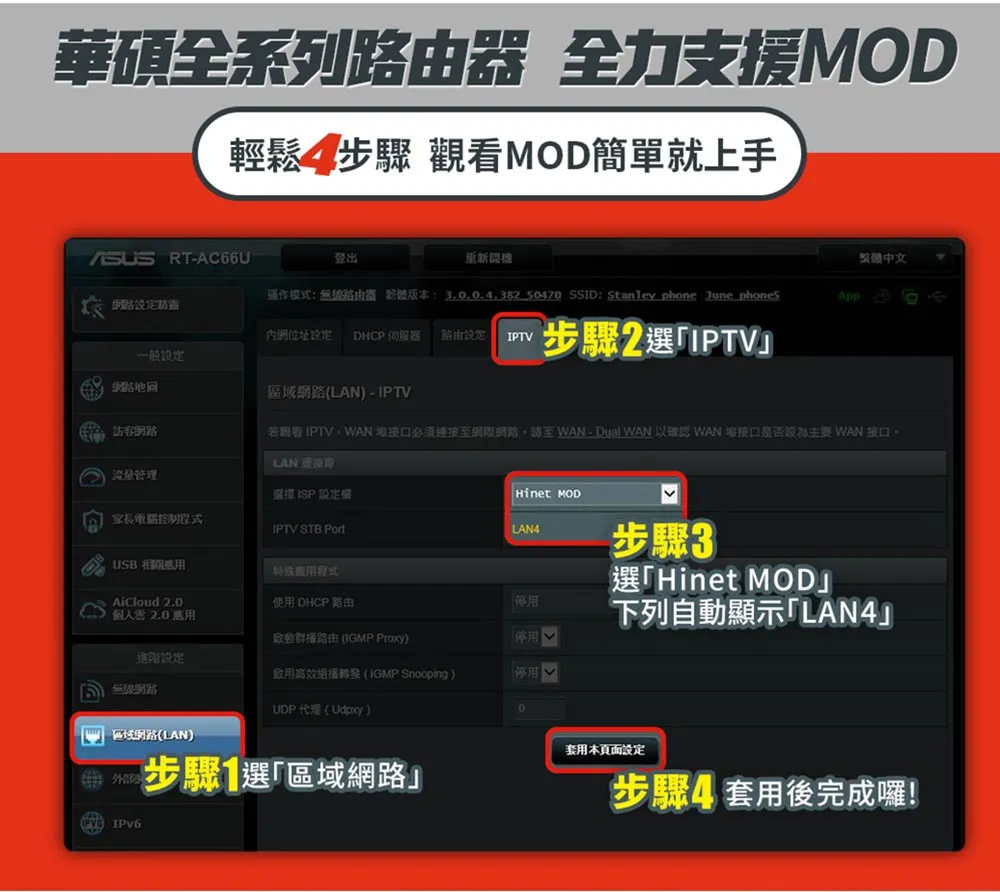

IPTV
Manually assign IP address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC address filter
• Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
4G / 5G Auto Mobile Tethering
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
WEB: ASUSWRT
APP: ASUS Router APP
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
